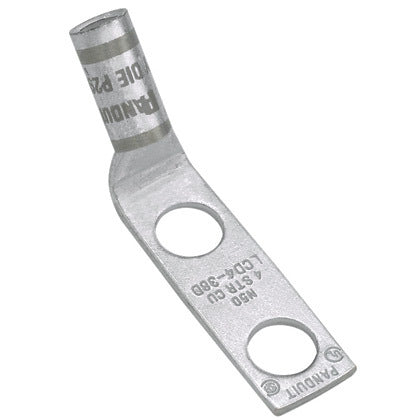

Panduit lugs [LCD4/0-56BH-X], PAE812
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| _THÔNG SỐ KỸ THUẬT: | |
|---|---|
| Lug Type | 2 Stud Hole Lug |
| Stud Hole Size (mm) | 7.9375 |
| Stud Hole Spacing (In.) | 0.75 |
| Stud Hole Spacing (mm) | 19.05 |
| Barrel Type | Standard Barrel with Inspection Window |
| Barrel Length (mm) | 30.226 |
| Barrel Length (In.) | 1.19 |
| Tongue Type | Standard |
| Tongue Width (In.) | 1.06 |
| Tongue Width (mm) | 26.924 |
| Tongue Angle | 45° |
| Tongue Thickness (mm) | 3.556 |
| Tongue Thickness (In.) | 0.14 |
| Overall Length (mm) | 69.342 |
| Overall Length (In.) | 2.73 |
| Finish/Coating | Tin-Plated |
| Standards Met | UL Listed and CSA Certified, 90° C temperature rating when crimped with Panduit and specified competitor crimping tools and dies; meets NEBS Level 3 tested by Telcordia |
| Maximum Voltage (kV) | 35 |
| Color Code | Purple |
| Panduit Die Index Number | P54 |
| Burndy Die Index Number | 15 |
| T & B Die Index Number | 54 |
| Wire Strip Length (mm) | 1.25 |
| Sub Brand | PAN LUG |
