Panduit lugs [LCDN1/0-14AF-X], PAE500

Name: Panduit lugs [LCDN1/0-14AF-X], PAE500
Brand: Panduit
SKU: PAE500
Availability: InStock

Mã kho: PAE500

Mã nhà sản xuất: LCDN1/0-14AF-X

Tên nhà sản xuất: Panduit

0₫ - 0₫

0₫

0₫ - 0₫

0₫

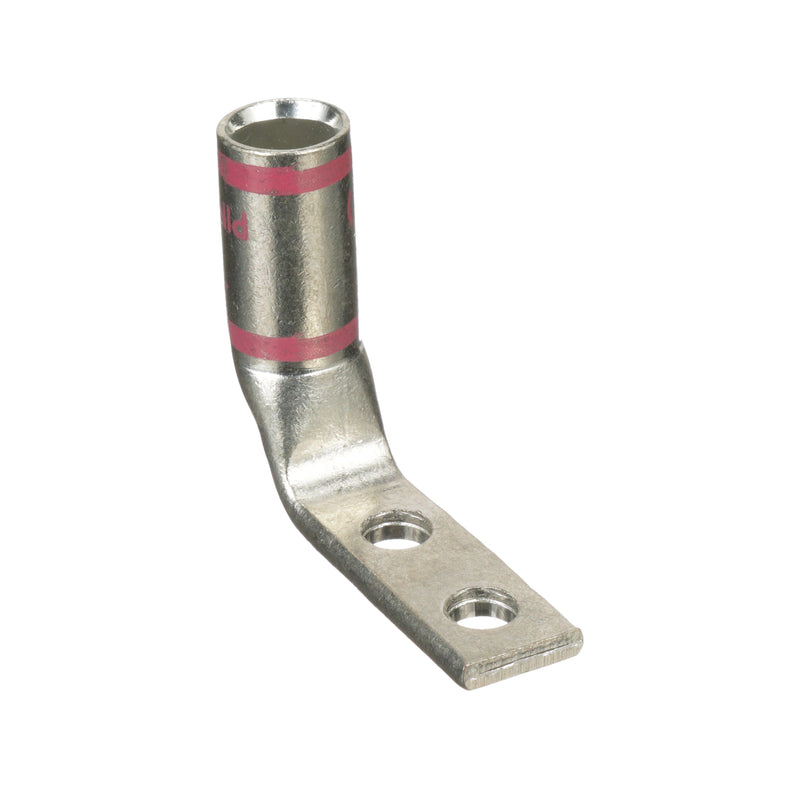

Copper Compression Lug, 2 Hole, #1/0 AWG, Narrow Tongue, 1/4" Stud, 0.625" Hole Spacing, 90o Angle Tongue

Lug Type	2 Stud Hole Lug
Sub Brand	NA
Stud Hole Size (In.)	0.25
Stud Hole Spacing (In.)	0.63
Stud Hole Spacing (mm)	15.9
Barrel Type	Standard Barrel with Inspection Window
Barrel Length (In.)	0.94
Barrel Length (mm)	23.9
Tongue Type	Narrow
Tongue Width (In.)	0.52
Tongue Width (mm)	13.2
Tongue Angle	90°
Tongue Thickness (In.)	0.12
Tongue Thickness (mm)	3
Overall Length (In.)	1.54
Overall Length (mm)	39.1
Finish/Coating	Tin-Plated
Standards Met	UL Listed and CSA Certified, 90° C temperature rating when crimped with Panduit and specified competitor crimping tools and dies
Maximum Voltage (kV)	35
Color Code	Pink
Panduit Die Index Number	P42
Burndy Die Index Number	12
T & B Die Index Number	42
Wire Strip Length (In.)	1
Part Features	NA
