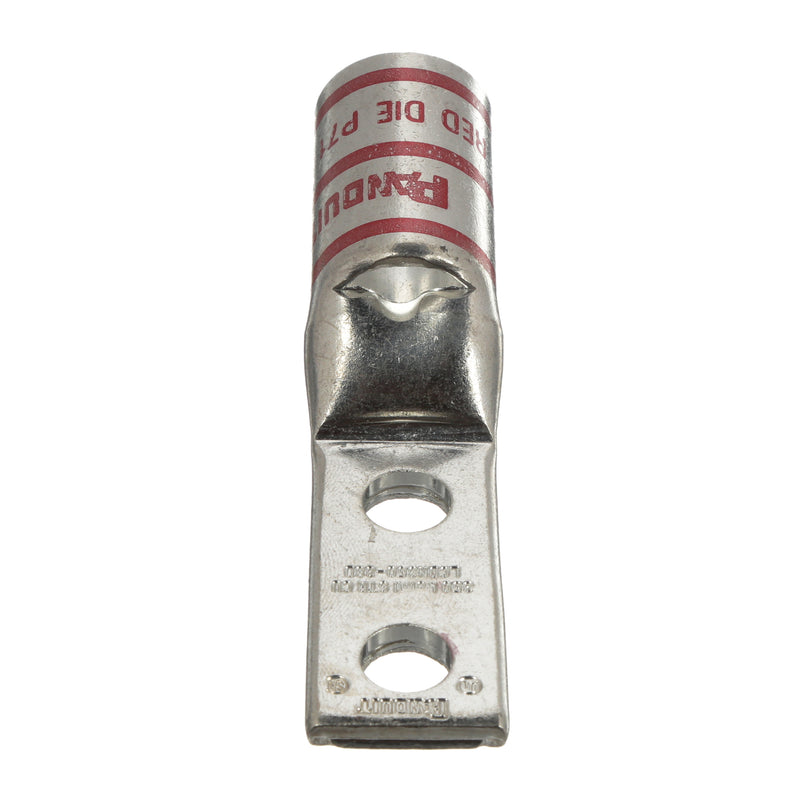

Panduit lugs [LCDN350-38D-X], PAE087

Name: Panduit lugs [LCDN350-38D-X], PAE087
Brand: Panduit
SKU: PAE087
Price: 612930.0 VND
Availability: InStock

Mã kho: PAE087

Mã nhà sản xuất: LCDN350-38D-X

Tên nhà sản xuất: Panduit

612.930₫ - 612.930₫

612.930₫

612.930₫ - 612.930₫

612.930₫

Two-hole, standard barrel with window, narrow tongue lug, 350 kcmil cable, 3/8 stud hole, 1 hole spacing.

Copper Conductor Size (kcmil)	350
Product Type	Tin-Plated Copper Compression Connectors - Lugs
Sub Brand	Pan-Lug
Stud Hole Size (In.)	42.95
Stud Hole Size (mm)	9.5
Stud Hole Spacing (In.)	1
Stud Hole Spacing (mm)	25.4
Barrel Type	Standard Barrel Length with Inspection Window
Barrel Length (In.)	1.44
Barrel Length (mm)	36.6
Tongue Type	Narrow
Tongue Width (In.)	0.88
Tongue Width (mm)	22.4
Tongue Thickness (In.)	0.17
Tongue Thickness (mm)	4.3
Overall Length (In.)	3.79
Overall Length (mm)	96.3
Color Code	Red
Panduit Die Index Number	P71
Burndy Die Index Number	18
Wire Strip Length (In.)	1.5
Wire Strip Length (mm)	38.1
Part Features	Tin plated to inhibit corrosion,color coded barrel, narrow tongue for limited space apps.
