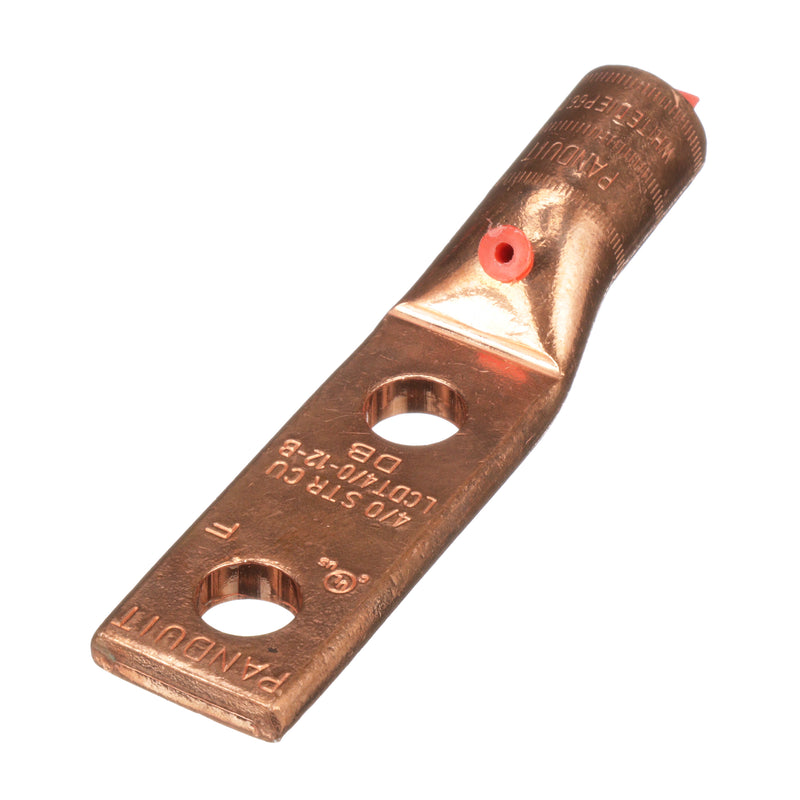

Panduit lugs [LCDT4/0-12-B-X], PAE096
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| _THÔNG SỐ KỸ THUẬT: | |
|---|---|
| Outer Diameter (mm) | 22.606 |
| Outer Diameter (In.) | 0.89 |
| Note | NA |
| Minimum Wire Size (AWG) | NA |
| Minimum Copper Conductor Size (AWG) | NA |
| Copper Conductor Size (AWG) | NA |
| Maximum Wire Size (AWG) | NA |
| Connection Type | Compression |
| Product Type | Copper Compression Grounding Lug |
| Lug Type | 2-Hole |
| Base Material | Copper |
| Aluminum Conductor Size (AWG) | NA |
| Class M Copper Flex Conductor Size (AWG) | NA |
| Class I Copper Flex Conductor Size (AWG) | NA |
| Copper Code Conductor Size (AWG) | 4/0 |
| Class K Copper Flex Conductor Size (AWG) | NA |
| DLO Copper Flex Conductor Size (AWG) | NA |
| Class H Copper Flex Conductor Size (AWG) | NA |
| Class G Copper Flex Conductor Size (AWG) | NA |
| Stud Hole Size (In.) | 0.5 |
| Stud Hole Size (mm) | 12.7 |
| Stud Hole Spacing (In.) | 1.75 |
| Stud Hole Spacing (mm) | 44.45 |
| Barrel Type | Standard |
| Barrel Length (mm) | 29.972 |
| Barrel Length (In.) | 1.18 |
| Tongue Type | Standard |
| Tongue Width (In.) | 1.22 |
| Tongue Width (mm) | 30.988 |
| Tongue Angle | Straight |
| Tongue Thickness (mm) | 7.62 |
| Tongue Thickness (In.) | 0.3 |
| Overall Length (mm) | 125.984 |
| Overall Length (In.) | 4.96 |
| Finish/Coating | Clear Coating |
| Standards Met | UL Listed for Power and Direct Burial Grounding Applications in the U.S. and Canada; Meets IEEE 837-2014 Requirements for Grounding |
| Maximum Voltage (kV) | 35 |
| Color Code | White |
| Panduit Die Index Number | P66 |
| Burndy Die Index Number | 17 |
| T & B Die Index Number | 66 |
| Wire Strip Length (mm) | 31.75 |
| Wire Strip Length (In.) | 1-1/4 |
| Includes | Anti-Ox. Compound in Barrel |
| Sub Brand | NA |
