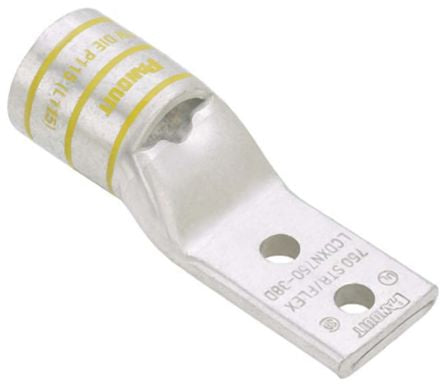

Panduit LCDXN Series Uninsulated Crimp Ring Terminal, 3/8in Stud Size, Silver [LCDXN500-38D-6]; 847-8877

Name: Panduit LCDXN Series Uninsulated Crimp Ring Terminal, 3/8in Stud Size, Silver [LCDXN500-38D-6]; 847-8877
Brand: Panduit
SKU: 8478877
Price: 1241750.0 VND
Availability: InStock

Mã kho: 8478877

Mã nhà sản xuất: LCDXN500-38D-6

Tên nhà sản xuất: Panduit

1.241.750₫ - 1.241.750₫

1.241.750₫

1.241.750₫ - 1.241.750₫

1.241.750₫

📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Wire Termination / Lugs Splices Split Bolts Accessories / Mechanical & Compression Lugs & Splices: Panduit LCDXN500-38D-6

MÔ TẢ SẢN PHẨM

Two-hole, flex lug, standard barrel with window, narrow tongue, 500 kcmil cable, 3/8 stud hole, 1 hole spacing.

_THÔNG SỐ KỸ THUẬT:

Product Type	Compression Connectors - Lugs
Stud Hole Size (In.)	3/8
Stud Hole Size (mm)	9.5
Stud Hole Spacing (In.)	1
Stud Hole Spacing (mm)	25.4
Tongue Type	Narrow
Tongue Thickness (In.)	0.32
Tongue Thickness (mm)	7.1
Tongue Width (In.)	1.3
Tongue Width (mm)	33
Overall Length (In.)	4.37
Overall Length (mm)	109.7
Barrel Type	Standard Barrel Length with Inspection Window
Barrel Length (In.)	1.48
Barrel Length (mm)	37.6
Sub Brand	Pan-Lug
Wire Strip Length (In.)	1.56
Wire Strip Length (mm)	40
Part Features	Tin plated to inhibit corrosion,color coded barrel,inspection window,narrow tongue for limited space apps.
