Panduit Wire Termination, [LCMA120-12-L]; PAI979

Name: Panduit Wire Termination, [LCMA120-12-L]; PAI979
Brand: Panduit
SKU: PAI979
Price: 236540.0 VND
Availability: InStock

Mã kho: PAI979

Mã nhà sản xuất: LCMA120-12-L

Tên nhà sản xuất: Panduit

236.540₫ - 236.540₫

236.540₫

236.540₫ - 236.540₫

236.540₫

📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Wire Termination / Lugs Splices Split Bolts Accessories / Mechanical & Compression Lugs & Splices: Panduit LCMA120-12-L

MÔ TẢ SẢN PHẨM

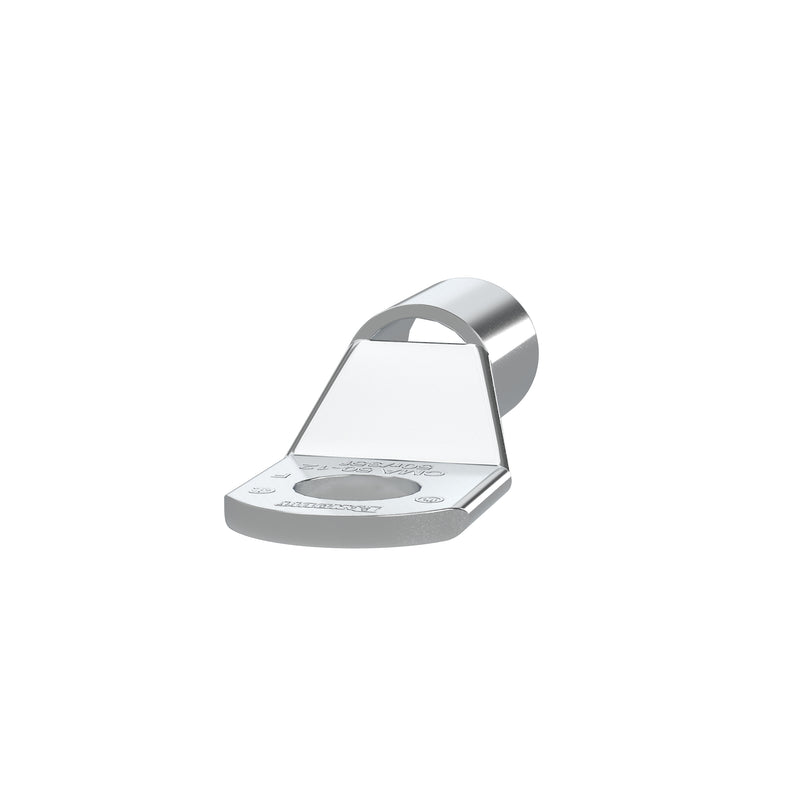

The LCMA120-12-L Tin-Plated Copper Compression Metric Lug, one-hole, standard barrel, has a rounded tongue convenient for use in tight spaces and a beveled wire entry for fast and easy installation. The inspection window aids to visually assure full conductor insertion, and the tin-plate material he

_THÔNG SỐ KỸ THUẬT:

Inside Diameter (In.)	0.59
Inside Diameter (mm)	14.98
Outer Diameter (In.)	0.73
Outer Diameter (mm)	18.54
Product Type	Tin-Plated CopperCompression Connectors - Metric Lugs
Lug Type	1 Stud Hole Lug
Base Material	Copper
Metric Class 2r Conductor Size for Copper Lugs, Splices(mm²)	120
Metric Class 5f-6f Wire Size for Copper Lugs, Splices(mm²)	95
Sub Brand	Pan-Lug™
Stud Hole Size (mm)	12
Barrel Type	Standard Barrel with Inspection Window
Barrel Length (In.)	0.96
Barrel Length (mm)	24.5
Tongue Type	Standard
Tongue Width (In.)	1.08
Tongue Width (mm)	27.5
Tongue Angle	Straight
Tongue Thickness (In.)	0.13
Tongue Thickness (mm)	3.5
Overall Length (In.)	2.55
Overall Length (mm)	64.7
Finish/Coating	Tin-Plated
Standards Met	Meets EN 61238-1:2003/IEC 61238-1:2003 Class B WITH Class 2r Wire
UL Temperature Rating (°C)	90
Maximum Voltage (kV)	35
Wire Strip Length (In.)	1-1/16
Wire Strip Length (mm)	26.9
Part Features	Tin plated to inhibit corrosion,color coded barrel,inspection window.
