Panduit Wire Termination, [LCMA25-10-C]; PAI980

Name: Panduit Wire Termination, [LCMA25-10-C]; PAI980
Brand: Panduit
SKU: PAI980
Price: 56200.0 VND
Availability: InStock

Mã kho: PAI980

Mã nhà sản xuất: LCMA25-10-C

Tên nhà sản xuất: Panduit

56.200₫ - 56.200₫

56.200₫

56.200₫ - 56.200₫

56.200₫

📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Wire Termination / Lugs Splices Split Bolts Accessories / Mechanical & Compression Lugs & Splices: Panduit LCMA25-10-C

MÔ TẢ SẢN PHẨM

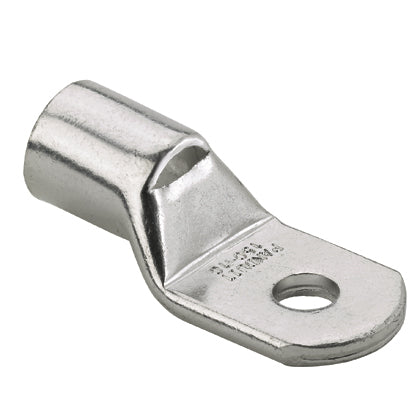

The LCMA25-10-C Tin-Plated Copper Compression Metric Lug, one-hole, standard barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. An inspection window aids to visually assure full conductor insertion, and the tin-plate materia

_THÔNG SỐ KỸ THUẬT:

Inside Diameter (In.)	0.27
Inside Diameter (mm)	6.9
Outer Diameter (In.)	0.34
Outer Diameter (mm)	8.8
Product Type	Tin-Plated CopperCompression Connectors - Metric Lugs
Lug Type	Standard
Base Material	Copper
Metric Class 2r Conductor Size for Copper Lugs, Splices(mm²)	25
Metric Class 5f-6f Wire Size for Copper Lugs, Splices(mm²)	16
Sub Brand	Pan-Lug™
Stud Hole Size (In.)	0.43
Stud Hole Size (mm)	11
Barrel Type	Standard Barrel Length with Inspection Window
Barrel Length (In.)	0.59
Barrel Length (mm)	15
Tongue Type	Standard
Tongue Width (In.)	0.61
Tongue Width (mm)	15.5
Tongue Angle	Straight
Tongue Thickness (In.)	0.06
Tongue Thickness (mm)	1.5
Overall Length (In.)	1.45
Overall Length (mm)	37
Finish/Coating	Tin-Plated
Standards Met	Meets EN 61238-1:2003/IEC 61238-1:2003 Class B WITH Class 2r Wire
UL Temperature Rating (°C)	90
Maximum Voltage (kV)	35
Panduit Die Index Number	P29
Wire Strip Length (In.)	0.64
Wire Strip Length (mm)	16.5
Part Features	Tin plated to inhibit corrosion,color coded barrel,inspection window.
