The multiple tie plate in natural color supports three bundles and is used with miniature, intermediate, and standard cable ties. It uses #6 (M3) screws and is made of nylon 6.6, which increases mechanical strength, heat and wear resistance, and stiffness

Mã kho: PAN525
Tên nhà sản xuất: Panduit
Original price 28.950₫ - Original price 28.950₫
Original price
28.950₫
28.950₫ - 28.950₫
Current price 28.950₫
📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Wire Routing Management Protection / Cable Wire Ties Mounts Straps / Cable Tie Mounts: Panduit MTP3S-E6-C

MÔ TẢ SẢN PHẨM

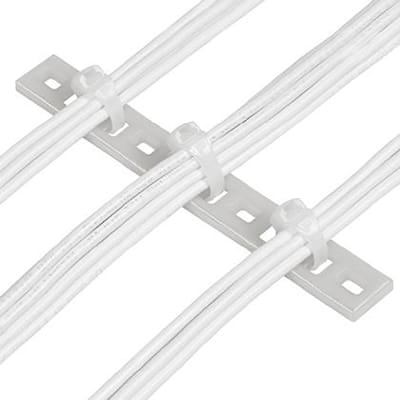

Panduit’s MTP3S-E6-C Multiple Tie Plates are designed to secure bundles that are closely spaced. With their low profile design, bundles stay close to mounting surface making them ideal for areas where overhead space is limited. These mounts can be used with miniature through standard cable ties and

_THÔNG SỐ KỸ THUẬT:

Application Low Profile Multiple Tie Plates Used to Secure Closely Spaced Wire Bundles
Product Type Cable Tie Mount
Color Natural
Environment Indoor
Material Nylon 6.6
Maximum Operating Temperature (°C) 85
Maximum Operating Temperature (°F) 185
Minimum Operating Temperature (°C) -60
Minimum Operating Temperature (°F) -76
Mount Method Screw
Mounting Hole Thread Size #6
Overall Height (In.) 3.75
Overall Height (mm) 95.2
Overall Length (In.) 4.25
Overall Length (mm) 108
Overall Width (In.) 0.5
Overall Width (mm) 50.3
Standards Met UL Recognized: E136577,CE Compliant, RoHS Compliant
For Use With Miniature, Intermediate, Standard Cross-Section Ties
