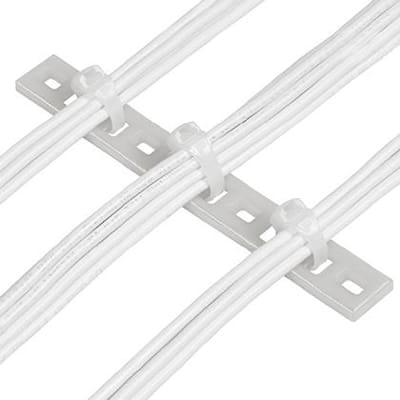

Panduit MTP5S-E6-C

The multiple tie plate in natural color supports five bundles and is used with miniature, intermediate, and standard cable ties. It uses #6 (M3) screws and is made of nylon 6.6, which increases mechanical strength, heat and wear resistance, and stiffness.

Mã kho: PAN532
Tên nhà sản xuất: Panduit
79.690₫ - 79.690₫
79.690₫
79.690₫ - 79.690₫
79.690₫
📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Wire Routing Management Protection / Cable Wire Ties Mounts Straps / Cable Tie Mounts: Panduit MTP5S-E6-C

MÔ TẢ SẢN PHẨM

The multiple tie plate in natural color supports five bundles and is used with miniature, intermediate, and standard cable ties. It uses #6 (M3) screws and is made of nylon 6.6, which increases mechanical strength, heat and wear resistance, and stiffness. It is designed for indoor environments and c

_THÔNG SỐ KỸ THUẬT:

Application Low Profile Multiple Tie Plates Used to Secure Closely Spaced Wire Bundles
Product Type Cable Tie Mount
Color Natural
Flammability Rating UL94V-2
Environment Indoor
Material Nylon 6.6
Maximum Operating Temperature (°C) 85
Maximum Operating Temperature (°F) 185
Minimum Operating Temperature (°C) -60
Minimum Operating Temperature (°F) -76
Mount Method Screw
Mounting Hole Thread Size #6
Overall Height (In.) 6.25
Overall Height (mm) 158.8
Overall Length (In.) 6.75
Overall Length (mm) 171.4
Overall Width (In.) 0.5
Overall Width (mm) 50.3
Standards Met UL Recognized: E136577,CE Compliant, RoHS Compliant
Sub Brand NA
For Use With Miniature, Intermediate, Standard Cross-Section Ties
