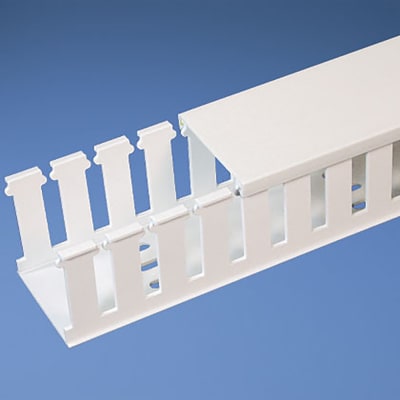

Panduit Panduct® type NE halogen-free wiring duct, 3 W x 5 H, 6' length, halogen-free, white. [NE3X5WH6]; PAN610

Name: Panduit Panduct® type NE halogen-free wiring duct, 3 W x 5 H, 6' length, halogen-free, white. [NE3X5WH6]; PAN610
Brand: Panduit
SKU: PAN610
Price: 1138730.0 VND
Availability: InStock

Mã kho: PAN610

Mã nhà sản xuất: NE3X5WH6

Tên nhà sản xuất: Panduit

1.138.730₫ - 1.138.730₫

1.138.730₫

1.138.730₫ - 1.138.730₫

1.138.730₫

📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Wire Routing Management Protection / Wiring Duct Accessories / Wiring Duct Duct Covers: Panduit NE3X5WH6

MÔ TẢ SẢN PHẨM

The NE3X5WH6 Halogen-Free Wide Slot Wiring Duct design provides greater rigidity and allows for a wide range of wire/bundle sizes. Upper and lower scorelines for easy finger/sidewall section removal. UL 94 flame class of V-0 with a UL recognized continuous-use temperature up to 95°C (203°F). Halogen

_THÔNG SỐ KỸ THUẬT:

Application	Wide slot/finger design provides greater sidewall rigidity and can be used in a wide range of flame retardant applications
Product Type	Base Wiring Duct
Color	White
Cover Part Number	NC3WH6
Flammability Rating	UL94V-0
Includes	Base Only
Standards Met	RoHS Compliant, UL Recognized, CE Compliant; CSA Approved; EN 45545-2 HL1
Material	Halogen-Free PPO
Mount Method	DIN Mounting Holes
Measurement System	Metric
Wiring Duct Style	Wide Slot Wiring Duct
Wiring Duct Type	NA
Overall Height (In.)	5.06
Overall Length (ft.)	6
Overall Length (m)	1.8
Overall Width (In.)	3.14
Overall Width (mm)	79.8
Slot Width (In.)	0.38
Slot Width (mm)	9.4
Sub Brand	Panduct®
Part Features	Halogen-Free Wide finger and slot design provides greater rigidity and allows use with a wide range of wire and bundle sizes. Upper and lower scorelines allows easy finger and sidewall section removals. The halogen-free material is environmentally safe and will not release corrosive or toxic gases.
