Panduit NNC37X75LG2

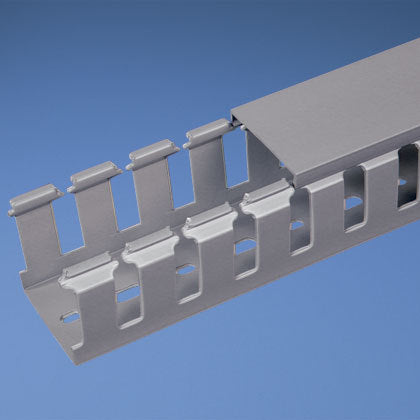

Panduit Panduct® type NNC halogen-free metric wiring duct, 37mm W x 75mm H x 2M length, halogen-free, light gray. [NNC37X75LG2]; PAN645

Mã kho: PAN645
Mã nhà sản xuất: NNC37X75LG2
Tên nhà sản xuất: Panduit
1.881.400₫ - 1.881.400₫
1.881.400₫
1.881.400₫ - 1.881.400₫
1.881.400₫
📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Wire Routing Management Protection / Wiring Duct Accessories / Wiring Duct Duct Covers: Panduit NNC37X75LG2

MÔ TẢ SẢN PHẨM

Panduct® type NNC halogen-free metric wiring duct, 37mm W x 75mm H x 2M length, halogen-free, light gray.

_THÔNG SỐ KỸ THUẬT:

Application NNC Wiring Duct is Used to Route, Protect, and Manage Wires near Sensitive Electronic Equipment and in Environments where Heat Resistance or Public Safety is a Concern
Product Type Base and Cover
Color Light Gray
Cover Part Number NC37WH2 (included)
Flammability Rating UL94 V-0
Includes Base and Cover
Standards Met RoHS Compliant, UL Recognized, CE Compliant
Material Halogen-Free PPO
Mount Method DIN Mounting Holes
Measurement System Metric
Wiring Duct Style Wide Slot Wiring Duct
Wiring Duct Type NNC
Overall Height (In.) 2.85
Overall Length (ft.) 6.6
Overall Length (m) 2
Overall Width (In.) 1.46
Overall Width (mm) 37.1
Slot Width (In.) 0.39
Slot Width (mm) 9.9
Sub Brand Panduct®
Part Features Metric Halogen-Free Wide finger and slot design provides greater rigidity and allows use with a wide range of wire and bundle sizes. Upper and lower scorelines allows easy finger and sidewall section removals. The halogen-free material is environmentally safe and will not release corrosive or toxic gases. Base and Cover Packaged together.
