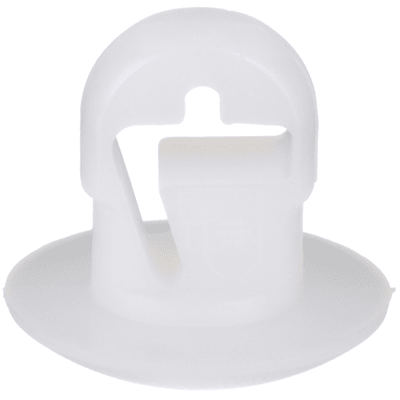

Panduit PBMS-H25-M

Panduit The push button cable tie mount requires a 0.25" (6.4 mm) hole and is natural color. It is made of nylon 6.6, which increases mechanical strength, heat and wear resistance, and stiffness. It comes in packages of 1000. [PBMS-H25-M]; PAN709

Mã kho: PAN709
Mã nhà sản xuất: PBMS-H25-M
Tên nhà sản xuất: Panduit
6.840₫ - 6.840₫
6.840₫
6.840₫ - 6.840₫
6.840₫
📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Wire Routing Management Protection / Cable Wire Ties Mounts Straps / Cable Tie Mounts: Panduit PBMS-H25-M

MÔ TẢ SẢN PHẨM

Panduit PMBS-H25-M push button cable tie mount requires no adhesive or additional mounting hardware. Designed for use where both sides of the panel are accessible. For maximum panel thickness of .125" (3.2mm) and for hole size .250" (6.4mm). Use with Miniature, Intermediate and Standard cross sectio

_THÔNG SỐ KỸ THUẬT:

Application Push Button Mounts for Use where Both Sides of the Panel are Accessible
Product Type Cable Tie Mount
Color Natural
Environment Indoor
Material Nylon 6.6
Maximum Compatible Panel Thickness (In.) 0.13
Maximum Compatible Panel Thickness (mm) 3.3
Maximum Operating Temperature (°C) 85
Maximum Operating Temperature (°F) 185
Minimum Operating Temperature (°C) -60
Minimum Operating Temperature (°F) -76
Mount Method Push Barb
Overall Height (In.) 0.4
Overall Height (mm) 10.2
Overall Length (In.) 0.42
Overall Length (mm) 10.7
Overall Width (In.) 0.42
Overall Width (mm) 10.7
Standards Met CE Compliant, UL Recognized: E136577, RoHS Compliant
For Use With Miniature, Intermediate, Standard Cross-Section Ties
