Dây rút Panduit 201mm x 4.83mm Black [PLC2S-S10-M20]

Name: Dây rút Panduit 201mm x 4.83mm Black [PLC2S-S10-M20]
Brand: Panduit
SKU: PAA443
Availability: InStock

Mã kho: PAA443

Mã nhà sản xuất: PLC2S-S10-M20

Tên nhà sản xuất: Panduit

0₫ - 0₫

0₫

0₫ - 0₫

0₫

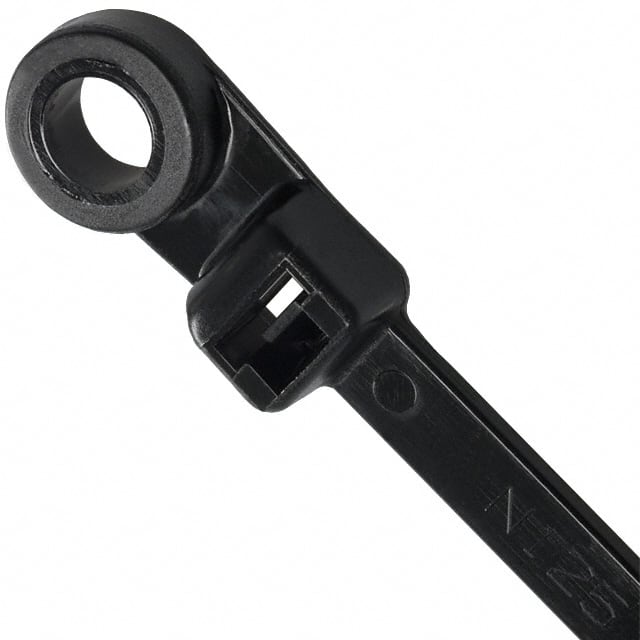

Pan-Ty® locking clamp tie, standard cross section, #10 (M5) screw, 7.9 (201mm) length, nylon 6.6, black.

Application	General
Product Type	Locking Clamp Ties
Color	Black
Environment	Plenum
Material	Nylon 6.6
Standards Met	CE Compliant; CSA Certified; UL 62275 Compliant (Type 2, 21); UL Recognized
Screw Size	#10 (M5)
Maximum Bundle Diameter (In.)	1.84
Minimum Bundle Diameter (In.)	0.06
Sub Brand	Pan-Ty®
Maximum Bundle Diameter (mm)	47
Minimum Bundle Diameter (mm)	1.5
Maximum Installation Temperature (°F)	32
Maximum Operating Temperature (°C)	85
Minimum Operating Temperature (°C)	-60
Maximum Operating Temperature (°F)	185
Minimum Operating Temperature (°F)	-76
Mounting Hole Width (In.)	0.37
Mounting Hole Width (mm)	9.5
Overall Length (In.)	7.9
Overall Length (mm)	200.7
Body Width (In.)	0.19
Body Width (mm)	4.8
Body Thickness (In.)	0.047
Body Thickness (mm)	1.2
Resistance Properties	NA
Minimum Loop Tensile Strength (N)	222
Minimum Loop Tensile Strength (lb)	50
Part Features	Used to secure a cable bundle to another surface such as a control panel, communication rack, wall or ceiling.
