Dây rút Panduit [PLC3S-S10-C0]

Name: Dây rút Panduit [PLC3S-S10-C0]
Brand: Panduit
SKU: PAA449
Price: 14020.0 VND
Availability: InStock

Mã kho: PAA449

Mã nhà sản xuất: PLC3S-S10-C0

Tên nhà sản xuất: Panduit

14.020₫ - 14.020₫

14.020₫

14.020₫ - 14.020₫

14.020₫

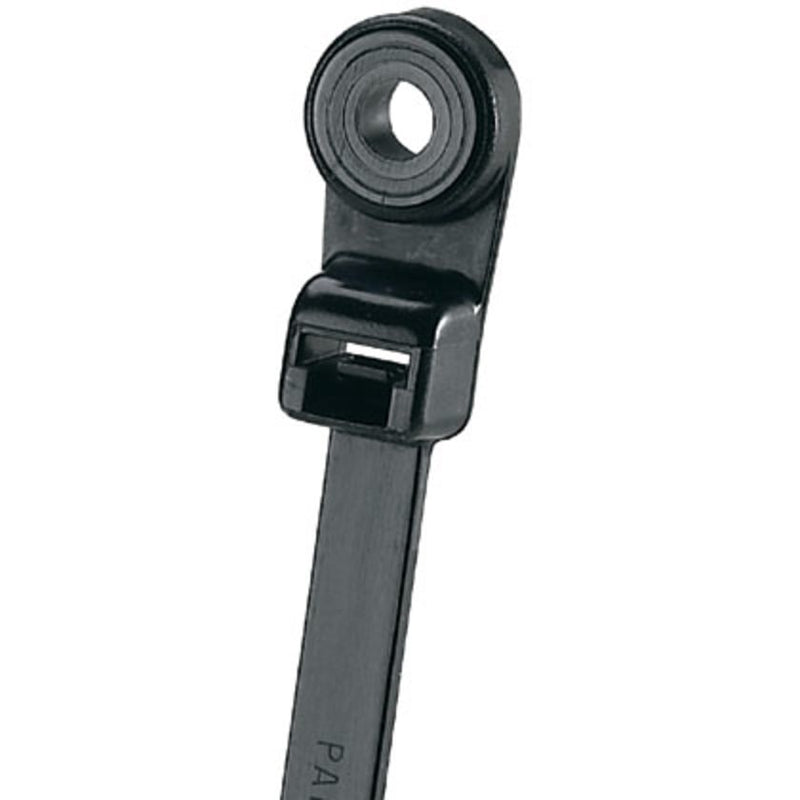

Pan-Ty® locking clamp tie, standard cross section, #10 (M5) screw, 12.0 (305mm) length, weather resistant nylon 6.6, black, standard package.

Application	General
Product Type	Locking Clamp Ties
Color	Black
Environment	Indoor/Outdoor
Material	Weather Resistant Nylon 6.6
Standards Met	CE Compliant; CSA Certified; UL 62275 Compliant (Type 1, 11); UL Recognized
Screw Size	#10 (M5)
Maximum Bundle Diameter (In.)	3
Minimum Bundle Diameter (In.)	0.06
Sub Brand	Pan-Ty®
Maximum Bundle Diameter (mm)	76
Minimum Bundle Diameter (mm)	1.5
Maximum Installation Temperature (°F)	32
Maximum Operating Temperature (°C)	85
Minimum Operating Temperature (°C)	-60
Maximum Operating Temperature (°F)	185
Minimum Operating Temperature (°F)	-76
Mounting Hole Width (In.)	0.37
Mounting Hole Width (mm)	9.5
Overall Length (In.)	12
Overall Length (mm)	304.8
Body Width (In.)	0.19
Body Width (mm)	4.8
Body Thickness (In.)	0.052
Body Thickness (mm)	1.3
Resistance Properties	UV Resistant
Minimum Loop Tensile Strength (N)	222
Minimum Loop Tensile Strength (lb)	50
Part Features	Used to secure a cable bundle to another surface such as a control panel, communication rack, wall or ceiling.
