Dây rút Panduit [PLC4H-S25-TL30]

Name: Dây rút Panduit [PLC4H-S25-TL30]
Brand: Panduit
SKU: PAA456
Price: 17380.0 VND
Availability: InStock

Mã kho: PAA456

Mã nhà sản xuất: PLC4H-S25-TL30

Tên nhà sản xuất: Panduit

17.380₫ - 17.380₫

17.380₫

17.380₫ - 17.380₫

17.380₫

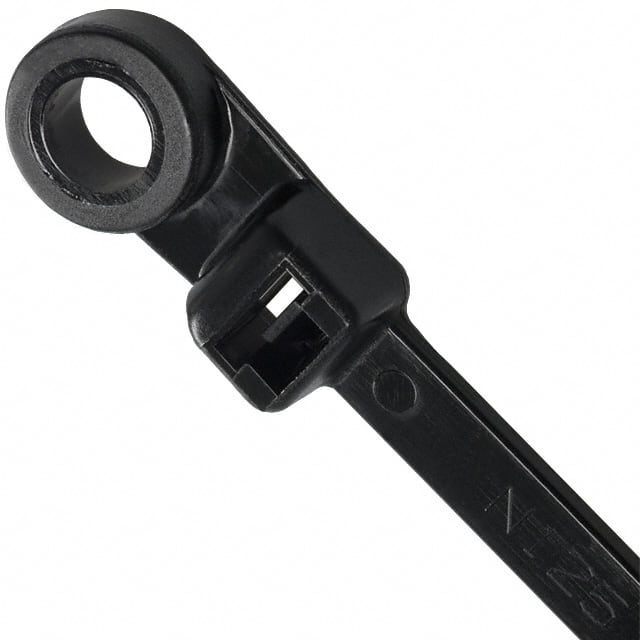

Pan-Ty® locking clamp tie, light-heavy cross section, 1/4 (M6) screw, 15.1 (384mm) length, heat stabilized nylon 6.6, black.

Application	High Temperature
Product Type	Locking Clamp Ties
Color	Black
Environment	Indoor
Material	Heat Stabilized Nylon 6.6
Standards Met	CE Compliant; CSA Certified; UL 62275 Compliant (Type 1, 11); UL Recognized
Screw Size	1/4 (M6)
Maximum Bundle Diameter (In.)	4
Minimum Bundle Diameter (In.)	0.18
Sub Brand	Pan-Ty®
Maximum Bundle Diameter (mm)	102
Minimum Bundle Diameter (mm)	4.8
Maximum Installation Temperature (°F)	32
Maximum Operating Temperature (°C)	115
Minimum Operating Temperature (°C)	-60
Maximum Operating Temperature (°F)	239
Minimum Operating Temperature (°F)	-76
Mounting Hole Width (In.)	5
Mounting Hole Width (mm)	12.7
Overall Length (In.)	15.1
Overall Length (mm)	384
Body Width (In.)	0.3
Body Width (mm)	7.6
Body Thickness (In.)	0.075
Body Thickness (mm)	1.9
Resistance Properties	Heat Resistant
Minimum Loop Tensile Strength (N)	534
Minimum Loop Tensile Strength (lb)	120
Part Features	Used to secure a cable bundle to another surface such as a control panel, communication rack, wall or ceiling.
