Dây rút Panduit 142mm x 2.5mm Gray [PLT1.5M-M8]

Name: Dây rút Panduit 142mm x 2.5mm Gray [PLT1.5M-M8]
Brand: Panduit
SKU: PAA540
Availability: InStock

Mã kho: PAA540

Mã nhà sản xuất: PLT1.5M-M8

Tên nhà sản xuất: Panduit

0₫ - 0₫

0₫

0₫ - 0₫

0₫

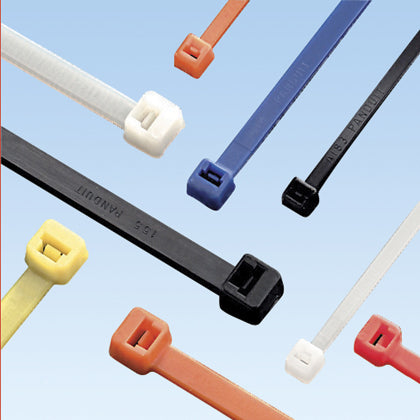

Pan-Ty® locking tie, miniature cross section, 5.6 (142mm) length, nylon 6.6, gray.

Product Type	Cable Tie
Color	Gray
Environment	Plenum
Sub Brand	Pan-Ty®
For Use With	GTS-E, GS2B-E, PTS
Material	Nylon 6.6
Resistance Properties	NA
Maximum Bundle Diameter (In.)	1.25
Maximum Bundle Diameter (mm)	31.8
Maximum Installation Temperature (°F)	32
Maximum Operating Temperature (°C)	85
Maximum Operating Temperature (°F)	115
Minimum Bundle Diameter (In.)	0.06
Minimum Bundle Diameter (mm)	1.5
Minimum Installation Temperature (°C)	-20
Minimum Installation Temperature (°F)	-4
Minimum Loop Tensile Strength (N)	80
Minimum Loop Tensile Strength (lb)	18
Minimum Operating Temperature (°C)	-60
Minimum Operating Temperature (°F)	-76
Overall Length (In.)	5.6
Overall Length (mm)	142
Body Width (In.)	0.098
Body Width (mm)	2.5
Body Thickness (In.)	0.043
Body Thickness (mm)	1.1
Standards Met	UL Recognized (File #E56854), UL 62275 Compliant (Type 2, 21), RoHS Complaint
Part Features	One-piece locking wedge for consistent performance and reliability. Low thread force and high loop tensile strength.
