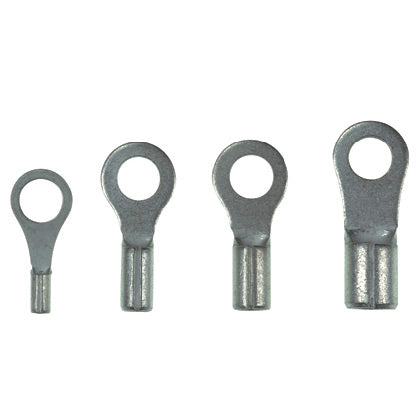

Panduit PM2-5R-C

Panduit Wire Termination, [PM2-5R-C]; PAJ152

Mã kho: PAJ152
Mã nhà sản xuất: PM2-5R-C
Tên nhà sản xuất: Panduit
8.050₫ - 8.050₫
8.050₫
8.050₫ - 8.050₫
8.050₫
📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Wire Termination / Terminals Terminal Kits / Ring Terminals: Panduit PM2-5R-C

MÔ TẢ SẢN PHẨM

Metric ring terminal, 1.0 – 2.5mm²+ + wire range, M5 stud size, non-insulated, bulk package.

_THÔNG SỐ KỸ THUẬT:

Stud Hole Size (In.) 29/100
Stud Hole Size (mm) 7.4
Insulation Material Non-Insulated
Maximum Copper Conductor Size (AWG SOL) NA
Maximum Copper Conductor Size (AWG STR) NA
Maximum Copper Conductor Size (AWG) 16,14
Maximum Wire Size (AWG) #14
Minimum Wire Size (AWG) #16
Minimum Copper Conductor Size (AWG SOL) NA
Wire Strip Length (In.) 0.28
Wire Strip Length (mm) 7.1
Standards Met UL 486A - UL 486B
Base Material Copper
Maximum Voltage (V) 2000
Maximum Voltage (kV) 2
Finish/Coating Tin-Plated
Color Code Metallic
Barrel Type Funnel
Flammability Rating NA
Maximum Operating Temperature (°C) 150
Maximum Operating Temperature (°F) 302
Sub Brand Pan-Term
Overall Length (In.) 0.7
Overall Length (mm) 18
Overall Width (In.) 0.35
Overall Width (mm) 8.9
Tongue Width (In.) 0.35
Tongue Width (mm) 8.9
Packaging Type Bottle
Product Type Loose Piece Ring Terminal
For Use With (1) 600V maximum Building wires (2) 1000V maximum Insigns, Fixtures and Luminaires
Part Features • Ring tongue design assures a secure connection in high vibration applications • Internal barrel serrations assure good wire contact and maximum tensile strength
