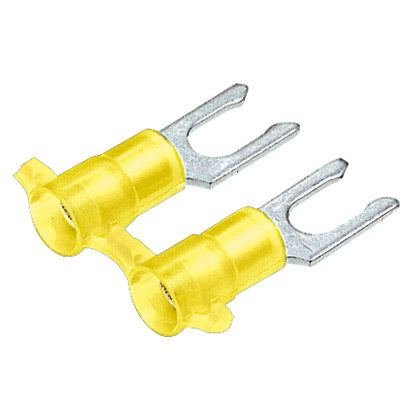

| Fork Type |
Locking Fork |
| Insulation Material |
Nylon |
| Insulation Type |
Nylon |
| Maximum Copper Conductor Size (AWG SOL) |
#10 |
| Maximum Copper Conductor Size (AWG STR) |
#10 |
| Maximum Copper Conductor Size (AWG) |
#10 |
| Maximum Wire Size (AWG) |
#10 |
| Minimum Wire Size (AWG) |
#12 |
| Minimum Copper Conductor Size (AWG SOL) |
#12 |
| Minimum Copper Conductor Size (AWG STR) |
#12 |
| Minimum Copper Conductor Size (AWG) |
#12 |
| Maximum Metric Conductor Size (mm²) |
6 |
| Minimum Metric Conductor Size (mm²) |
4 |
| Stud Size |
#8 |
| Wire Strip Length (In.) |
0.28 |
| Wire Strip Length (mm) |
7.1 |
| Standards Met |
UL Listed 587H E52164; CSA Certified LR31212 |
| Maximum Voltage (V) |
600 |
| Maximum Voltage (kV) |
0.6 |
| Base Material |
Copper |
| Finish/Coating |
Tin-Plated |
| Color Code |
Yellow |
| Barrel Type |
Grip Sleeve |
| Barrel Length (In.) |
0.53 |
| Barrel Length (mm) |
13.3 |
| Flammability Rating |
UL 587-H |
| Insulation Diameter (In.) |
0.23 |
| Insulation Diameter (mm) |
5.7 |
| Maximum Operating Temperature (°C) |
105 |
| Maximum Operating Temperature (°F) |
221 |
| Seam Type |
NA |
| Maximum Wire Insulation Diameter (In.) |
0.23 |
| Maximum Wire Insulation Diameter (mm) |
5.7 |
| Minimum Wire Insulation Diameter (In.) |
0.13 |
| Minimum Wire Insulation Diameter (mm) |
3.3 |
| Stud Hole Size (In.) |
4/25 |
| Stud Hole Size (mm) |
4.2 |
| Overall Length (In.) |
1.05 |
| Overall Length (mm) |
26.7 |
| Overall Width (In.) |
0.3 |
| Overall Width (mm) |
7.6 |
| Tongue Length (In.) |
0.53 |
| Tongue Length (mm) |
13.3 |
| Sub Brand |
Reel Smart™ |
| Tongue Thickness (In.) |
0.04 |
| Tongue Thickness (mm) |
1 |
| Tongue Width (In.) |
0.3 |
| Tongue Width (mm) |
7.6 |
| Packaging Type |
Reel |
| Product Type |
Terminals on a Reel |
| For Use With |
CP-851, CP-860, CP-861, CA-800, CD-800-3 |
| Part Features |
Continuously molded design provides reliable, consistent performance
through the applicator for a high quality termination every time. Snap in
place for secure connection. Fork design provides for fast and easy
installation, without the need to remove fastener. Metal insulation grip
sleeve crimps to wire insulation, providing protection to the crimp joint
during high vibration applications. Internal barrel serrations assure good
wire contact and maximum tensile strength |
|
