Panduit Wire Termination, [PNF18-6FN-3K]; PAJ366

Name: Panduit Wire Termination, [PNF18-6FN-3K]; PAJ366
Brand: Panduit
SKU: PAJ366
Price: 11170.0 VND
Availability: InStock

Mã kho: PAJ366

Mã nhà sản xuất: PNF18-6FN-3K

Tên nhà sản xuất: Panduit

11.170₫ - 11.170₫

11.170₫

11.170₫ - 11.170₫

11.170₫

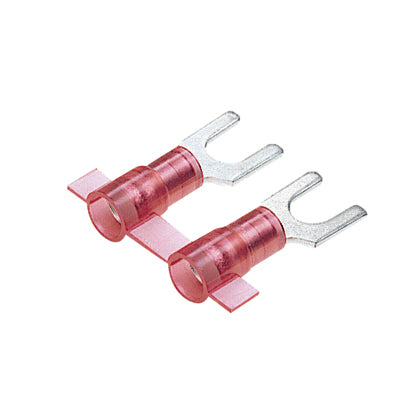

Fork Terminal, nylon insulated, narrow tongue, funnel entry, metal insulation grip sleeve, 22- 18 AWG wire range, #6 stud size.

Fork Type	Narrow Fork
Insulation Material	Nylon
Insulation Type	Nylon
Maximum Copper Conductor Size (AWG STR)	#18
Maximum Copper Conductor Size (AWG)	#18
Maximum Wire Size (AWG)	#18
Minimum Wire Size (AWG)	#22
Minimum Copper Conductor Size (AWG STR)	#22
Minimum Copper Conductor Size (AWG)	#22
Maximum Metric Conductor Size (mm²)	1
Minimum Metric Conductor Size (mm²)	0.5
Stud Size	#6
Wire Strip Length (In.)	0.25
Wire Strip Length (mm)	6.4
Standards Met	American Bureau of Shipping (ABS); C22.2 No.65; UL486A-486B
Maximum Voltage (V)	600
Maximum Voltage (kV)	0.6
Base Material	Copper
Finish/Coating	Tin-Plated
Color Code	Red
Barrel Type	Funnel
Flammability Rating	UL 94 V-2/UL 94 HB
Insulation Diameter (In.)	0.15
Insulation Diameter (mm)	3.8
Maximum Operating Temperature (°C)	105
Maximum Operating Temperature (°F)	221
Seam Type	NA
Maximum Wire Insulation Diameter (In.)	0.15
Maximum Wire Insulation Diameter (mm)	3.7
Outer Diameter (In.)	0.15
Outer Diameter (mm)	3.7
Overall Length (In.)	0.78
Overall Length (mm)	19.8
Overall Width (In.)	0.3
Overall Width (mm)	7.6
Sub Brand	Reel Smart™
Tongue Width (In.)	0.3
Tongue Width (mm)	7.62
Packaging Type	Reel
Product Type	Terminals on a Reel
For Use With	CD9-1A, CD-800-1
Part Features	Fork design provides for fast and easy installation, without the need to remove fastener Internal barrel serrations assure good wire contact and maximum tensile strength Barrel of terminal internally beveled to provide
