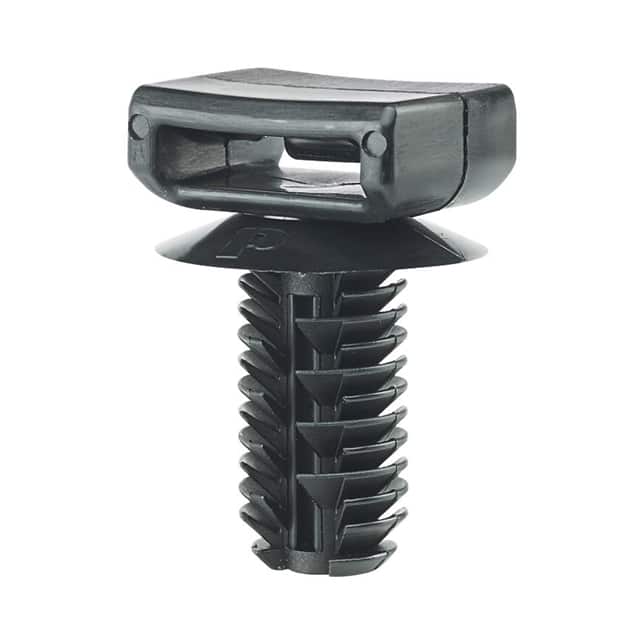

Panduit PUME925-D350

Panduit Heavy Duty Fir Tree Push Mount, hole size 0.354", Heat Stabilized, Impact Modified, Weather Resistant Nylon 6.6. [PUME925-D350]; PAO342

Mã kho: PAO342
Mã nhà sản xuất: PUME925-D350
Tên nhà sản xuất: Panduit
10.050₫ - 10.050₫
10.050₫
10.050₫ - 10.050₫
10.050₫
📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Wire Routing Management Protection / Cable Wire Ties Mounts Straps / Cable Tie Mounts: Panduit PUME925-D350

MÔ TẢ SẢN PHẨM

Heavy Duty Fir Tree Push Mount, hole size 0.354", Heat Stabilized, Impact Modified, Weather Resistant Nylon 6.6.

_THÔNG SỐ KỸ THUẬT:

Application They Are a Reliable and Cost Effective Solution for Securing Wire Harnesses in The Automotive, Marine, White Goods, Heavy Equipment and Mass Transit-Rail Markets
Product Type Cable Tie Mount
Color Black
Environment Indoor/Outdoor
Material Heat Stabilized/Weather Resistant Nylon 6.6
Maximum Compatible Panel Thickness (In.) 0.62
Maximum Compatible Panel Thickness (mm) 16
Maximum Operating Temperature (°C) 115
Maximum Operating Temperature (°F) 239
Minimum Operating Temperature (°C) -60
Minimum Operating Temperature (°F) -76
Mount Method Fir Tree Mount
Mounting Hole Thread Size NA
Overall Height (In.) 1.1
Overall Height (mm) 28
Overall Length (In.) 0.8
Overall Length (mm) 30
Overall Width (In.) 0.8
Overall Width (mm) 30
Resistance Properties Heat and UV Resistant
Standards Met Chemical Resistance at 21 ° C (70 ° F): Excellent Resistance to Common Transportation Fluids Including: Ethylene Glycol, Gasoline, Jet Fuel, Hydraulic Fluid, Transmission Fluids and 10% Sodium Chloride Solution, Environmental Compliance: Meets 2000/53/Ec
Sub Brand Pan-Ty®
For Use With Miniature, Intermediate, Standard, Light Heavy, Heavy, Extra-Heavy Cross-Section Ties
