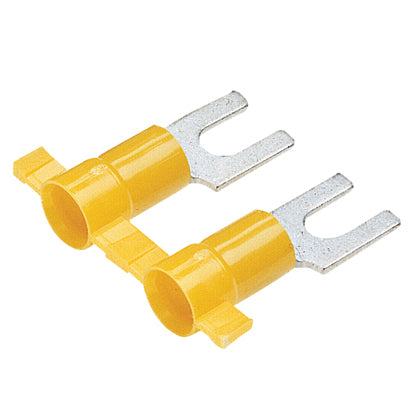

| Fork Type |
Standard |
| Insulation Material |
Vinyl |
| Insulation Type |
Vinyl |
| Maximum Copper Conductor Size (AWG SOL) |
#10 |
| Maximum Copper Conductor Size (AWG STR) |
#10 |
| Maximum Copper Conductor Size (AWG) |
#10 |
| Maximum Wire Size (AWG) |
#10 |
| Minimum Wire Size (AWG) |
#12 |
| Minimum Copper Conductor Size (AWG SOL) |
#12 |
| Minimum Copper Conductor Size (AWG STR) |
#12 |
| Minimum Copper Conductor Size (AWG) |
#12 |
| Maximum Metric Conductor Size (mm²) |
6 |
| Minimum Metric Conductor Size (mm²) |
4 |
| Stud Size |
#6 |
| Wire Strip Length (In.) |
0.34 |
| Wire Strip Length (mm) |
8.7 |
| Standards Met |
American Bureau of Shipping (ABS); C22.2 No.65; UL486A-486B; 587H; E52164;
LR312120 |
| Maximum Voltage (V) |
600 |
| Maximum Voltage (kV) |
0.6 |
| Base Material |
Copper |
| Finish/Coating |
Tin-Plated |
| Color Code |
Yellow |
| Barrel Type |
Funnel |
| Barrel Length (In.) |
0.39 |
| Barrel Length (mm) |
9.9 |
| Flammability Rating |
UL 94 V-0 |
| Insulation Diameter (In.) |
0.23 |
| Insulation Diameter (mm) |
5.8 |
| Maximum Operating Temperature (°C) |
105 |
| Maximum Operating Temperature (°F) |
221 |
| Seam Type |
Butted |
| Maximum Wire Insulation Diameter (In.) |
0.23 |
| Maximum Wire Insulation Diameter (mm) |
5.8 |
| Outer Diameter (In.) |
0.23 |
| Outer Diameter (mm) |
5.8 |
| Stud Hole Size (In.) |
3/20 |
| Stud Hole Size (mm) |
3.8 |
| Overall Length (In.) |
0.99 |
| Overall Length (mm) |
25.1 |
| Overall Width (In.) |
0.3 |
| Overall Width (mm) |
7.6 |
| Tongue Length (In.) |
0.6 |
| Tongue Length (mm) |
15.2 |
| Sub Brand |
Reel Smart™ |
| Tongue Thickness (In.) |
0.04 |
| Tongue Thickness (mm) |
1 |
| Tongue Width (In.) |
0.3 |
| Tongue Width (mm) |
7.6 |
| Packaging Type |
Reel |
| Product Type |
Terminals on a Reel |
| For Use With |
CP-871; CA-800; CA9; CD-800-3; CD9-3B |
| Part Features |
Continuously molded design provides reliable, consistent performance
through the applicator for a high quality termination every time. Fork
design provides for fast and easy installation, without the need to remove
fastener. Insulation support helps to prevent wire damage in bending
applications. |
|
