Panduit Wire Termination, [PV14-P47B-3K]; PAJ511

Name: Panduit Wire Termination, [PV14-P47B-3K]; PAJ511
Brand: Panduit
SKU: PAJ511
Price: 9520.0 VND
Availability: InStock

Mã kho: PAJ511

Mã nhà sản xuất: PV14-P47B-3K

Tên nhà sản xuất: Panduit

9.520₫ - 9.520₫

9.520₫

9.520₫ - 9.520₫

9.520₫

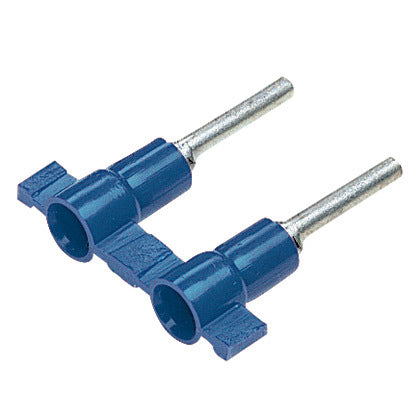

Pin Terminal, vinyl insulated, funnel entry, plastic insulation crimp, #16 14 AWG wire range.

Pin Length (In.)	0.49
Pin Length (mm)	12.4
Insulation Material	Vinyl
Maximum Wire Size (AWG)	16 - 14 AWG
Wire Strip Length (In.)	0.3
Wire Strip Length (mm)	6.3
Standards Met	UL
Maximum Voltage (V)	600
Maximum Voltage (kV)	0.6
Base Material	Copper
Finish/Coating	Tin-Plated
Color Code	Blue
Barrel Type	Butted
Flammability Rating	UL94-V0
Insulation Diameter (In.)	0.17
Insulation Diameter (mm)	4.3
Maximum Wire Insulation Diameter (In.)	0.17
Maximum Wire Insulation Diameter (mm)	4.3
Overall Length (In.)	0.9
Overall Length (mm)	22.9
Sub Brand	Reel Smart
Packaging Type	Reel
Product Type	Terminals on Reel
Part Features	Continuously molded design provides reliable, consistent performance through the applicator for a high quality termination every time Solid pin designed to prevent damage to the wire from over tightening, resulting in a reliable electrical connection Insulation support helps to prevent wire damage in bending applications
