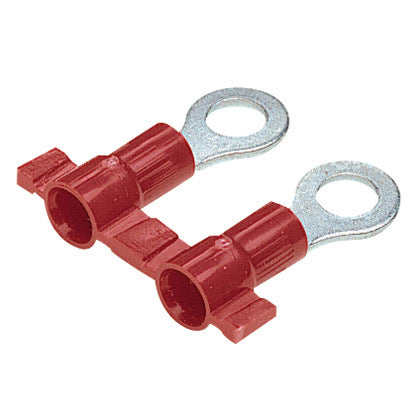

Panduit PV18-38RB-2K

Panduit Wire Termination, [PV18-38RB-2K]; PAJ527

Mã kho: PAJ527
Mã nhà sản xuất: PV18-38RB-2K
Tên nhà sản xuất: Panduit
9.860₫ - 9.860₫
9.860₫
9.860₫ - 9.860₫
9.860₫
📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Wire Termination / Terminals Terminal Kits / Ring Terminals: Panduit PV18-38RB-2K

MÔ TẢ SẢN PHẨM

The PV18-38RB-3K Reel Smart™ Terminal is a continuously molded and vinyl fully insulated ring terminal. The continuously molded design allows for consistent and reliable processing through Panduit applicators. Brazed seam protects terminal barrel from splitting during the crimp process. Internal bar

_THÔNG SỐ KỸ THUẬT:

Stud Hole Size (In.) 3/8
Insulation Material Vinyl
Maximum Copper Conductor Size (AWG SOL) #18
Maximum Copper Conductor Size (AWG STR) #18
Minimum Copper Conductor Size (AWG SOL) #22
Minimum Copper Conductor Size (AWG STR) #22
Maximum Metric Conductor Size (mm²) 1
Minimum Metric Conductor Size (mm²) 0.5
Wire Strip Length (In.) 1/4
Wire Strip Length (mm) 6.4
Standards Met UL 486A/B, and CSA 22.2 No.65
Base Material Copper
Maximum Voltage (V) 600
Maximum Voltage (kV) 0.6
Finish/Coating Tin-Plated
Color Code Red
Barrel Type Funnel
Flammability Rating UL94V-0
Maximum Operating Temperature (°C) 105
Maximum Operating Temperature (°F) 221
Maximum Wire Insulation Diameter (In.) 0.15
Maximum Wire Insulation Diameter (mm) 3.8
Sub Brand Reel Smart™
Overall Length (In.) 1.15
Overall Length (mm) 29.2
Overall Width (In.) 0.53
Overall Width (mm) 13.5
Tongue Thickness (In.) 0.03
Tongue Thickness (mm) 0.8
Tongue Width (In.) 0.53
Tongue Width (mm) 13.5
Product Type Ring Terminal on Reel
For Use With Crimp press with CA9 (CD9-1B) or CA-800EZ (CD-800-1) applicator
Part Features • Continuously molded design provides reliable, consistent performance through the applicator for a high quality termination every time • Ring tongue design assures a secure connection in high vibration applications • Insulation support helps to prevent wire damage in bending applications
