| Note |

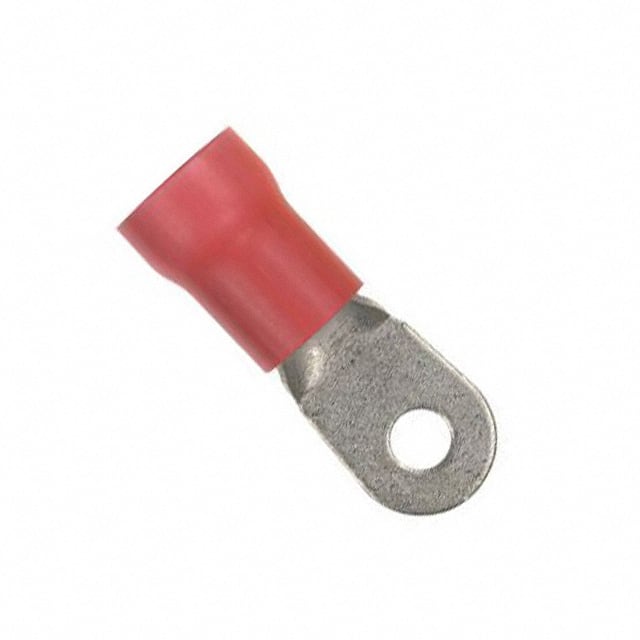

PV2-14R-TY replaces PV2-14R-T |
| Stud Hole Size (In.) |
27/100 |
| Stud Hole Size (mm) |
6.8 |
| Stud Size |
1/4" |
| Insulation Material |
Vinyl |
| Maximum Copper Conductor Size (AWG SOL) |
#2 |
| Maximum Copper Conductor Size (AWG STR) |
#2 |
| Maximum Copper Conductor Size (AWG) |
#2 |
| Maximum Wire Size (AWG) |
#2 |
| Minimum Wire Size (AWG) |
#2 |
| Minimum Copper Conductor Size (AWG SOL) |
#2 |
| Minimum Copper Conductor Size (AWG STR) |
#2 |
| Minimum Copper Conductor Size (AWG) |
#2 |
| Wire Strip Length (In.) |
0.5 |
| Wire Strip Length (mm) |
12.7 |
| Standards Met |
UL Listed 587H E52164 |
| Base Material |
Copper |
| Maximum Voltage (V) |
600 |
| Maximum Voltage (kV) |
0.6 |
| Finish/Coating |
Tin-Plated |
| Color Code |
Red |
| Barrel Type |
Funnel |
| Barrel Length (In.) |
0.81 |
| Barrel Length (mm) |
20.5 |
| Flammability Rating |
UL 94 V-0 |
| Insulation Diameter (In.) |
0.56 |
| Insulation Diameter (mm) |
14.2 |
| Maximum Operating Temperature (°C) |
105 |
| Maximum Operating Temperature (°F) |
221 |
| Maximum Wire Insulation Diameter (In.) |
0.56 |
| Maximum Wire Insulation Diameter (mm) |
14.2 |
| Outer Diameter (In.) |
0.56 |
| Outer Diameter (mm) |
14.2 |
| Sub Brand |
Pan-term |
| Overall Length (In.) |
1.96 |
| Overall Length (mm) |
49.8 |
| Overall Width (In.) |
0.68 |
| Overall Width (mm) |
17.3 |
| Tongue Length (In.) |
1.15 |
| Tongue Length (mm) |
29.2 |
| Tongue Thickness (In.) |
0.06 |
| Tongue Thickness (mm) |
1.5 |
| Tongue Width (In.) |
0.68 |
| Tongue Width (mm) |
17.3 |
| Packaging Type |
Box |
| Product Type |
Ring Terminal |
| For Use With |
CT-720, CD-720PV8-2 |
| Part Features |
• Ring tongue design assures a secure connection in high vibration
applications • Insulation support helps to prevent wire damage in bending
applications • Internal barrel serrations assure good wire contact and
maximum tensile strength |
|
