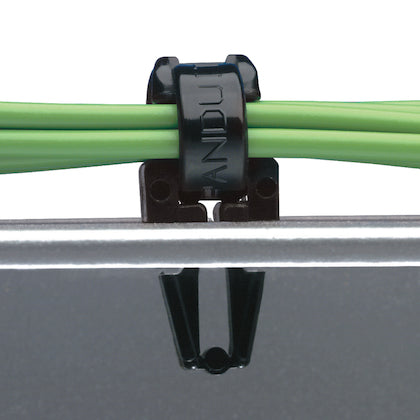

Panduit PWMHH12-M300

The winged push barb cable tie mount requires a 0.51" (13.0 mm) hole and is black. It is made of weather-resistant nylon 6.6, which increases mechanical strength, heat and wear resistance, and stiffness. It comes in packages of 1000.

Mã kho: PAO422
Tên nhà sản xuất: Panduit
7.330₫ - 7.330₫
7.330₫
7.330₫ - 7.330₫
7.330₫
📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Wire Routing Management Protection / Cable Wire Ties Mounts Straps / Cable Tie Mounts: Panduit PWMHH12-M300

MÔ TẢ SẢN PHẨM

The winged push barb cable tie mount requires a 0.51" (13.0 mm) hole and is black. It is made of weather-resistant nylon 6.6, which increases mechanical strength, heat and wear resistance, and stiffness. It comes in packages of 1000.

_THÔNG SỐ KỸ THUẬT:

Application Winged Push Barb Cable Tie Mount
Note High Temperature
Product Type Cable Tie Mount
Color Black
Environment Indoor/Outdoor
Material Heat Stabilized/Weather Resistant Nylon 6.6
Maximum Compatible Panel Thickness (In.) 0.35
Maximum Compatible Panel Thickness (mm) 9
Maximum Operating Temperature (°C) 115
Maximum Operating Temperature (°F) 239
Minimum Operating Temperature (°C) -60
Minimum Operating Temperature (°F) -76
Mount Method Push Barb
Mounting Hole Thread Size NA
Overall Height (In.) 0.35
Overall Height (mm) 8.9
Overall Length (In.) 1.27
Overall Length (mm) 32.5
Overall Width (In.) 0.98
Overall Width (mm) 50.3
Resistance Properties Heat and UV Resistant
Standards Met RoHS Compliant
Sub Brand NA
For Use With Standard, Light Heavy, Heavy Cross-Section Ties
