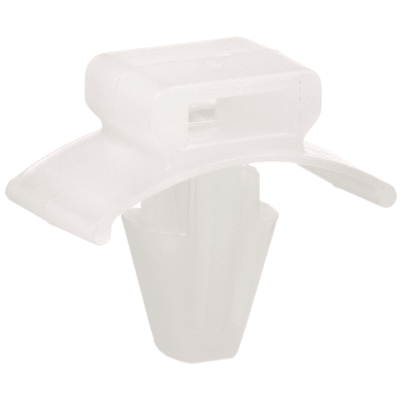

Panduit The winged push barb cable tie mount requires a 0.250" (6.5 mm) hole and is natural color. It is made of nylon 6.6, which increases mechanical strength, heat and wear resistance, and stiffness. It comes in packages of 1000. [PWMS-H25-M]; PAO424

Mã kho: PAO424
Mã nhà sản xuất: PWMS-H25-M
Tên nhà sản xuất: Panduit
Original price 6.730₫ - Original price 6.730₫
Original price
6.730₫
6.730₫ - 6.730₫
Current price 6.730₫
📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Wire Routing Management Protection / Cable Wire Ties Mounts Straps / Cable Tie Mounts: Panduit PWMS-H25-M

MÔ TẢ SẢN PHẨM

Panduit PWMS-H25-M winged push barb cable ties are designed for mounting a cable into a pre-drilled hole sized .229" to .255" (5.8mm - 6.5mm) and for maximum panel thickness of .105" (2.7mm). Made of Nylon 6.6, which increases mechanical strength, heat and wear resistance, and stiffness. For use wit

_THÔNG SỐ KỸ THUẬT:

Application Push Barb Cable Tie Mounts Wing Provides Added Stability and Can be Used where Only One Side of the Panel is Accessible
Product Type Cable Tie Mount
Color Natural
Environment Indoor
Material Nylon 6.6
Maximum Compatible Panel Thickness (In.) 0.11
Maximum Compatible Panel Thickness (mm) 2.8
Maximum Operating Temperature (°C) 85
Maximum Operating Temperature (°F) 185
Minimum Operating Temperature (°C) -60
Minimum Operating Temperature (°F) -76
Mount Method Push Barb
Overall Height (In.) 0.62
Overall Height (mm) 15.7
Overall Length (In.) 0.71
Overall Length (mm) 18
Overall Width (In.) 0.37
Overall Width (mm) 9.3
Standards Met CE Compliant,UL Recognized: E136577, RoHS Compliant
For Use With Miniature, Intermediate, Standard Cross-Section Ties
