Panduit Grounding strip; 89.15" (2.3m) length; .67" (17mm) width; .05" (1.27mm) thickness; provided with .16 oz. (5cc) of antioxidant, one grounding sticker and three each #12-24 x 1/2" and M6 x 12mm thread-forming screws. [RGS13451-1]; PAO550

Name: Panduit Grounding strip; 89.15" (2.3m) length; .67" (17mm) width; .05" (1.27mm) thickness; provided with .16 oz. (5cc) of antioxidant, one grounding sticker and three each #12-24 x 1/2" and M6 x 12mm thread-forming screws. [RGS13451-1]; PAO550
Brand: Panduit
SKU: PAO550
Price: 3974590.0 VND
Availability: InStock

Mã kho: PAO550

Mã nhà sản xuất: RGS13451-1

Tên nhà sản xuất: Panduit

3.974.590₫ - 3.974.590₫

3.974.590₫

3.974.590₫ - 3.974.590₫

3.974.590₫

📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Grounding Bonding / Grounding Busbars Strips / Grounding Strip Kits: Panduit RGS13451-1

MÔ TẢ SẢN PHẨM

The RGS13451-1 Grounding Strip bonds up to 51RU's within a rack or cabinet with threaded rail fasteners with an EIA Universal Mounting Hole Pattern. Engineered to comply with US and international grounding requirements.

_THÔNG SỐ KỸ THUẬT:

Sub Brand	StructuredGround™
Number of Rack Units	51
Overall Length (In.)	89.15
Overall Length (mm)	2264.41
Overall Thickness (In.)	0.05
Overall Thickness (mm)	1.27
Overall Width (In.)	0.67
Overall Width (mm)	17.01
Standards Met	TIA-607-C and BICSI 002 Meets the requirements of common referenced industry standards, UL 467, C22.2 No.41-18

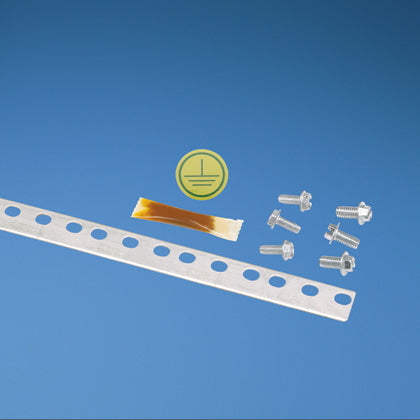

Includes	Grounding strip; 89.15" (2.3m) length; .67" (17mm) width; .05" (1.27mm) thickness; provided with .16 oz. (5cc) of antioxidant, one grounding sticker and three each #12-24 x 1/2" and M6 x 12mm thread-forming screws.
Application	Telecom/Data Center
Product Type	Grounding Strip Kits
Part Features	Bonds directly to the equipment mounting rail, providing a convenient bonding location for ITE which improves grounding cable management and EIA Universal mounting hole pattern. Paint- piercing components -Automatically creates the necessary bonds when installed, saving installation time and cost while preventing errors
