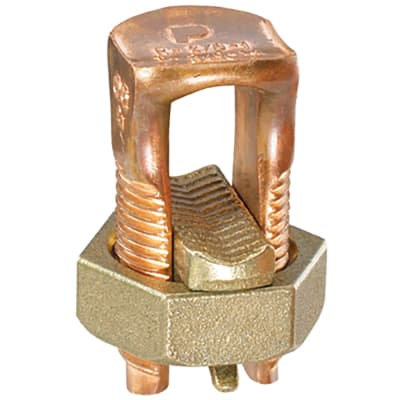

Panduit SBC2/0-Q

Panduit Split bolt, copper, type SBC, #2 STR - 2/0 STR AWG. [SBC2/0-Q]; PAO754

Mã kho: PAO754
Mã nhà sản xuất: SBC2/0-Q
Tên nhà sản xuất: Panduit
738.250₫ - 738.250₫
738.250₫
738.250₫ - 738.250₫
738.250₫
📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Wire Termination / Lugs Splices Split Bolts Accessories / Split Bolts: Panduit SBC2/0-Q

MÔ TẢ SẢN PHẨM

The SBC2/0-Q Mechanical Lug Split Bolt Copper is made from high strength copper alloy to provide premium electrical and mechanical performance for wide wire range-taking capability that helps minimize inventory requirements. The internal pressure bar provides a secure connection on a full range of c

_THÔNG SỐ KỸ THUẬT:

Product Type Mechanical Connectors - Split Bolt
Connection Type Copper to Copper
Base Material Copper
Minimum Copper Conductor Size (AWG SOL) 2
Maximum Copper Conductor Size (AWG STR) 2/0
Standards Met UL listed to 467 and 486 and CSA certified for use up to 600V & Temperature Rated to 90°C
UL Temperature Rating (°C) 90
Maximum Voltage (V) 600
Overall Height (In.) 1.72
Overall Height (mm) 43.68
Sub Brand Pan-Lug™
Part Features high strength copper for corrosion resistance,extra long body,range taking,true hex design for correct fit
