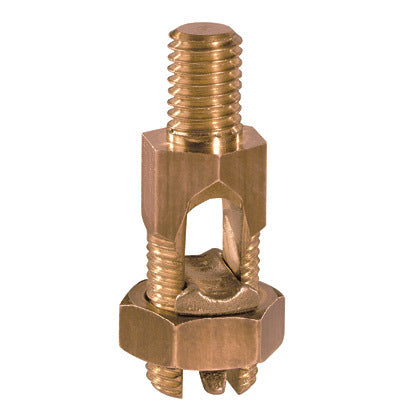

Panduit Bronze, service post connector, 2 SOL-1/0 STR, male, two cable, type SP2. [SP2-1/0-L]; PAO941

Name: Panduit Bronze, service post connector, 2 SOL-1/0 STR, male, two cable, type SP2. [SP2-1/0-L]; PAO941
Brand: Panduit
SKU: PAO941
Availability: InStock

Mã kho: PAO941

Mã nhà sản xuất: SP2-1/0-L

Tên nhà sản xuất: Panduit

0₫ - 0₫

0₫

0₫ - 0₫

0₫

📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Grounding Bonding / Grounding Mechanical Connectors / Service Post Connectors: Panduit SP2-1/0-L

MÔ TẢ SẢN PHẨM

Bronze, service post connector, 2 SOL-1/0 STR, male, two cable, type SP2.

_THÔNG SỐ KỸ THUẬT:

Sub Brand	StructuredGround
Material	High Copper Content Hard Drawn Rod
Overall Length (In.)	1.69
Overall Length (mm)	42.9
Stud Length (In.)	0.75
Stud Length (mm)	19.1
Standards Met	cULus Listed - 467, DB Rated
Product Type	Grounding Connectors - Service Post, Male Stud, two- Conductors
Part Features	Offered with standard and long stud lengths to accommodate a variety of mounting applications. Wide range-taking capabilities minimizes inventory requirements. True hex design for body and nut hex provides correct fit with socket, box or open end wrenches resulting in proper torquing of electrical connection. Pressure bar provides a secure connection on a full range of conductor combinations used with each connector providing premium wire pull-out strength.

Panduit Bronze, service post connector, 2 SOL-1/0 STR, male, two cable, type SP2. [SP2-1/0-L]; PAO941
