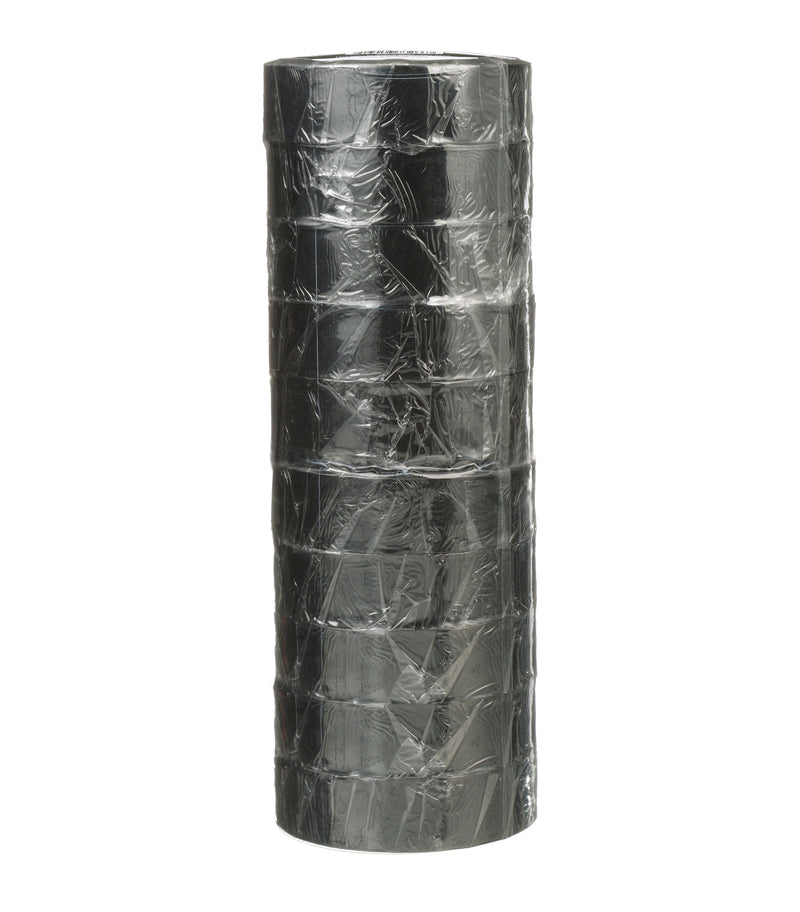

Panduit Wire Routing, Management & Protection, [ST14-075-60BKX]; PAI406

Name: Panduit Wire Routing, Management & Protection, [ST14-075-60BKX]; PAI406
Brand: Panduit
SKU: PAI406
Availability: InStock

Mã kho: PAI406

Mã nhà sản xuất: ST14-075-60BKX

Tên nhà sản xuất: Panduit

0₫ - 0₫

0₫

0₫ - 0₫

0₫

📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Contractor Products / Electrical Tape / Stronhold Tm Pvc Tape: Panduit ST14-075-60BKX

MÔ TẢ SẢN PHẨM

Panduit ST14 General Purpose PVC Electrical Tape is a 0.18 mm (7 mil), one sided rubber based, pressure sensitive adhesive glossy finish vinyl electrical tape. The ST14 series product is non-corrosive and has pressure-sensitive adhesive which eliminates the need for heat, moisture and or other catal

_THÔNG SỐ KỸ THUẬT:

Sub Brand	StrongHold™
Product Type	PVC Electrical Tape
Color	Black
Material	Polyvinyl Chloride (PVC)
Overall Thickness (In.)	0.007
Overall Thickness (mm)	0.18
Overall Width (In.)	0.75
Overall Width (mm)	19.05
Overall Length (ft.)	60
Overall Length (m)	18.29
Tensile Strength (N/cm)	23.54
Tensile Strength (kg/mm)	0.24
Elongation at Break (%)	200
Adhesion to Steel (N/cm)	1.75
Adhesion to Steel (oz/in)	16
Adhesion to Backing (N/cm)	1.75
Adhesion to Backing (oz/in)	16
Flammability Rating	UL 510 Flame Retardant
Flagging (mm)	0
Maximum Operating Temperature (°C)	80
Maximum Operating Temperature (°F)	176
Minimum Operating Temperature (°C)	-10
Minimum Operating Temperature (°F)	14
Dielectric Breakdown Voltage (V)	7000
Standards Met	Meets UL 510 CAS C 22.2 No 197; Meets RoHS 2002/95/EC directives
Compliance Certifications	UL Listed / CSA Certified
Environment	Indoor/Outdoor
Application	Contractor, Electrical Construction, Industrial Construction, Manufacturing, Maintenance and Repair
Durability (yr)	5
Tape Style	General Purpose
Adhesive Backing Material	Rubber
