Panduit Wire Routing, Management & Protection, [ST17-075-66BR]; PAI408

Mã kho: PAI408
Mã nhà sản xuất: ST17-075-66BR
Tên nhà sản xuất: Panduit
Original price 35.560₫ - Original price 35.560₫
Original price
35.560₫
35.560₫ - 35.560₫
Current price 35.560₫
📩 Liên hệ để có giá tốt: CV@chanhvinh.com

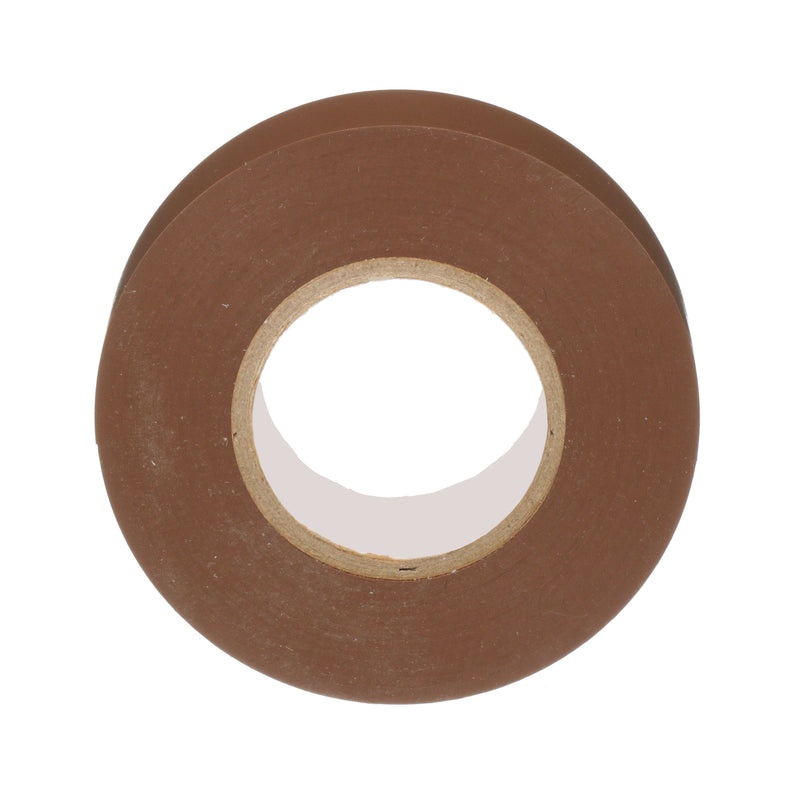

Wire Routing Management Protection / Electrical Tape / Pvc Electrical Tape: Panduit ST17-075-66BR

MÔ TẢ SẢN PHẨM

StrongHold ST17-075-66BR General Purpose PVC Electrical Tape has non-corrosive and pressure-sensitive adhesive, which eliminates the need for heat, moisture or other catalysts during application. Its high elongation provides excellent conformability properties and it is .75" x 66' x .007” in size. I

_THÔNG SỐ KỸ THUẬT:

Sub Brand StrongHold™
Product Type General Purpose
Color Brown
Material Polyvinyl Chloride (PVC)
Overall Thickness (In.) 0.007
Overall Thickness (mm) 0.18
Overall Width (In.) 0.75
Overall Width (mm) 19.05
Overall Length (ft.) 66
Overall Length (m) 20.12
Tensile Strength (N/cm) 24.72
Tensile Strength (kg/mm) 0.252
Elongation at Break (%) 200
Adhesion to Steel (N/cm) 1.97
Adhesion to Steel (oz/in) 18
Adhesion to Backing (N/cm) 1.97
Adhesion to Backing (oz/in) 18
Flammability Rating UL 510 Flame Retardant
Maximum Operating Temperature (°C) 80
Maximum Operating Temperature (°F) 176
Minimum Operating Temperature (°C) -10
Minimum Operating Temperature (°F) 14
Dielectric Breakdown Voltage (V) 7
Standards Met Meets UL 510 CAS C 22.2 No 197; Meets RoHS 2002/95/EC directives
Compliance Certifications UL Listed/CSA Certified
Environment Indoor/Outdoor
Application Contractor, Electrical Construction, Industrial Construction, Manufacturing, Maintenance and Repair
Durability (yr) 5
Tape Style General Purpose
Adhesive Backing Material Rubber
