Panduit ST35 Series Professional Grade PVC Electrical Tape is a 0.18 mm (7 mil) is a pressure sensitive vinyl electrical tape that applies easily and provides a high level of performance over a range of temperatures. The ST35 series product is flame retar

Mã kho: PAP044
Tên nhà sản xuất: Panduit
Original price 159.630₫ - Original price 159.630₫
Original price
159.630₫
159.630₫ - 159.630₫
Current price 159.630₫
📩 Liên hệ để có giá tốt: CV@chanhvinh.com

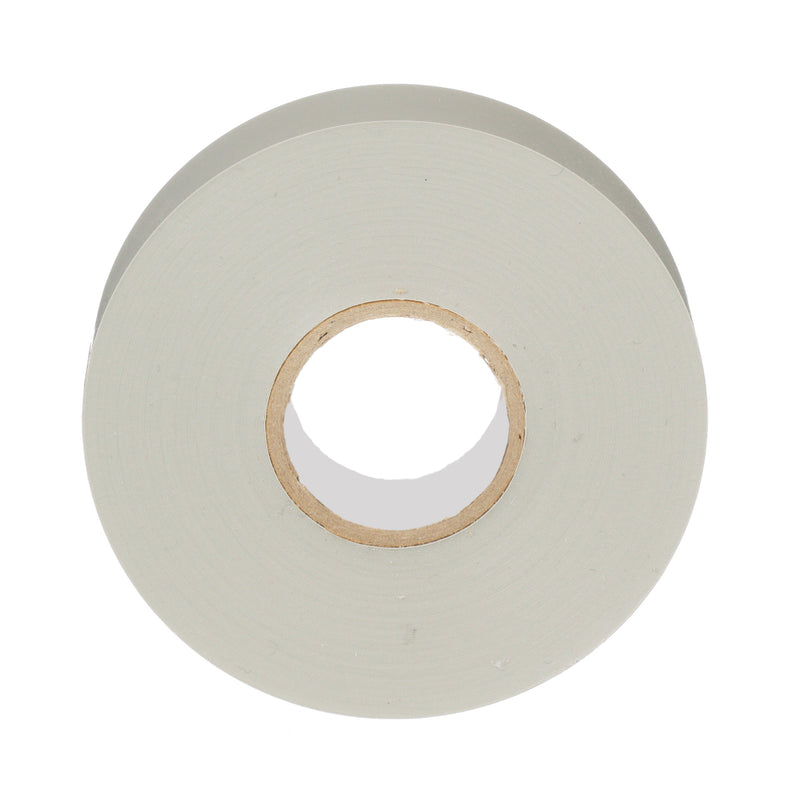

Wire Routing Management Protection / Electrical Tape / Pvc Electrical Tape: Panduit ST35-075-66GY

MÔ TẢ SẢN PHẨM

StrongHold ST35-075-66GY Professional Grade PVC Electrical Tape is a pressure sensitive vinyl electrical tape that applies easily and provides a high level of performance over a range of temperatures. It has excellent elasticity and insulating properties and it is .75" x 66' x .007" in size. It is g

_THÔNG SỐ KỸ THUẬT:

Sub Brand StrongHold™
Product Type Professional Grade
Color Gray
Material Polyvinyl Chloride (PVC)
Overall Thickness (In.) 0.007
Overall Thickness (mm) 0.18
Overall Width (In.) 0.75
Overall Width (mm) 19
Overall Length (ft.) 66
Overall Length (m) 20
Tensile at Break (N/cm) 30
Tensile at Break (kg/mm) 0.31
Elongation at Break (%) 260
Adhesion to Steel (N/cm) 2.2
Adhesion to Steel (oz/in) 20.1
Adhesion to Backing (N/cm) 2.2
Adhesion to Backing (oz/in) 20.1
Flammability Rating UL 510 Flame Retardant
Flagging (mm) 0
Maximum Operating Temperature (°C) 105
Maximum Operating Temperature (°F) 221
Minimum Operating Temperature (°C) -18
Minimum Operating Temperature (°F) 0
Dielectric Strength Standard (kV) 8
Dielectric Strength Wet (90%) (kV) 7.2
Insulation Resistance (MΩ) 1.00E+06
Standards Met Meets ASTM D-3005, Type 1; EN 60454-3-1, Type 11; UL 510 CSA C 22.2 No 197; Meets 2000/53/EC and RoHS 2011/65/EU directives
Compliance Certifications UL Listed/CSA Certified
Environment Indoor/Outdoor
Application Contractor, Electrical Construction, Industrial Construction, Manufacturing, Maintenance and Repair
Durability (yr) 5
Tape Style Professional Grade
Adhesive Backing Material Rubber
