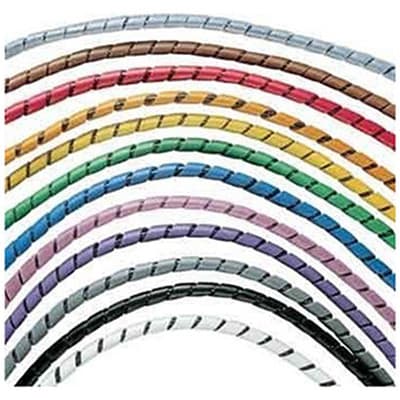

Panduit T12FR-C20Y

Panduit Spiral Wrap, offers abrasion protection for wires, cables, hoses and tubing, .12" (3.2mm) x 100', flame retardant polyethylene, black. [T12FR-C20Y]; PAP133

Mã kho: PAP133
Mã nhà sản xuất: T12FR-C20Y
Tên nhà sản xuất: Panduit
2.653.310₫ - 2.653.310₫
2.653.310₫
2.653.310₫ - 2.653.310₫
2.653.310₫
📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Wire Routing Management Protection / Abrasion Protection / Cable Sleeves Tools Wraps: Panduit T12FR-C20Y

MÔ TẢ SẢN PHẨM

Spiral Wrap, offers abrasion protection for wires, cables, hoses and tubing, .12" (3.2mm) x 100', flame retardant polyethylene, black.

_THÔNG SỐ KỸ THUẬT:

Application (1) Harness Multiple Cables Into a Single Manageable Bundle (2) Allows Breakouts of Single/Multiple Cables (3) Provides Abrasion Protection for Wire, Cables, Hoses, and Tubing
Note T12FR-C20Y replaces T12FR-C20
Product Type Spiral Wrap
Color Black
Flammability Rating UL94V-0
Includes Installation Tool
Material Polyethylene
Resistance Properties Flame Resistant
Maximum Bundle Diameter (In.) 0.5
Maximum Bundle Diameter (mm) 12.7
Maximum Operating Temperature (°C) 50
Maximum Operating Temperature (°F) 122
Minimum Bundle Diameter (In.) 0.0625
Minimum Bundle Diameter (mm) 1.6
Minimum Operating Temperature (°C) -20
Minimum Operating Temperature (°F) -4
Outer Diameter (In.) 0.12
Outer Diameter (mm) 3
Overall Length (ft.) 100
Overall Length (m) 30.5
Standards Met UL Recognized E141152
Wall Thickness (In.) 0.03
Wall Thickness (mm) 0.8
Part Features Allows breakouts of single/multiple cables, Provides abrasion protection for wire, cables, hoses and tubing. Multiple colors allow for easy identification of cable bundles. Installation tool is supplied and the spiral wrap is reusable.
