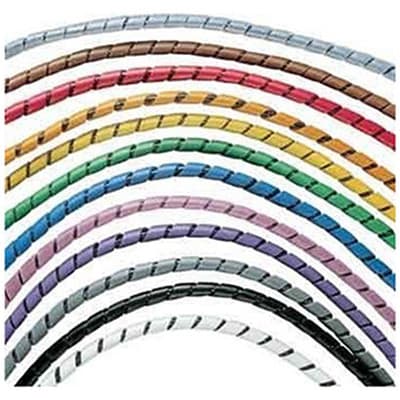

Panduit T12N-C0

Panduit Spiral Wrap, offers abrasion protection for wires, cables, hoses and tubing, .12" (3.2mm) x 100', weather resistant nylon 6.6, black. [T12N-C0]; PAP136

Mã kho: PAP136
Mã nhà sản xuất: T12N-C0
Tên nhà sản xuất: Panduit
3.614.800₫ - 3.614.800₫
3.614.800₫
3.614.800₫ - 3.614.800₫
3.614.800₫
📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Wire Routing Management Protection / Abrasion Protection / Cable Sleeves Tools Wraps: Panduit T12N-C0

MÔ TẢ SẢN PHẨM

Spiral Wrap, offers abrasion protection for wires, cables, hoses and tubing, .12" (3.2mm) x 100', weather resistant nylon 6.6, black.

_THÔNG SỐ KỸ THUẬT:

Application (1) Harness Multiple Cables Into a Single Manageable Bundle (2) Allows Breakouts of Single/Multiple Cables (3) Provides Abrasion Protection for Wire, Cables, Hoses, and Tubing
Product Type Spiral Wrap
Color Black
Flammability Rating UL94-HB
Includes Installation Tool
Material Weather Resistant Nylon 6.6
Resistance Properties Weather Resistant
Maximum Bundle Diameter (In.) 0.5
Maximum Bundle Diameter (mm) 12.7
Maximum Operating Temperature (°C) 65
Maximum Operating Temperature (°F) 149
Minimum Bundle Diameter (In.) 0.0625
Minimum Bundle Diameter (mm) 1.6
Minimum Operating Temperature (°C) -40
Minimum Operating Temperature (°F) -40
Outer Diameter (In.) 0.12
Outer Diameter (mm) 3
Overall Length (ft.) 100
Overall Length (m) 30.5
Standards Met UL Recognized E141152
Wall Thickness (In.) 0.01
Wall Thickness (mm) 0.4
Part Features Allows breakouts of single/multiple cables, Provides abrasion protection for wire, cables, hoses and tubing. Multiple colors allow for easy identification of cable bundles. Installation tool is supplied and the spiral wrap is reusable.
