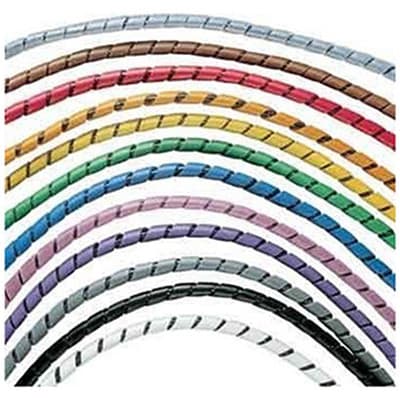

Panduit T12R-CY

Panduit Spiral Wrap, offers abrasion protection for wires, cables, hoses and tubing, .12" (3.2mm) x 100', fire resistant polyethylene, white. [T12R-CY]; PAP138

Mã kho: PAP138
Mã nhà sản xuất: T12R-CY
Tên nhà sản xuất: Panduit
2.037.130₫ - 2.037.130₫
2.037.130₫
2.037.130₫ - 2.037.130₫
2.037.130₫
📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Wire Routing Management Protection / Abrasion Protection / Cable Sleeves Tools Wraps: Panduit T12R-CY

MÔ TẢ SẢN PHẨM

Spiral Wrap, offers abrasion protection for wires, cables, hoses and tubing, .12" (3.2mm) x 100', fire resistant polyethylene, white.

_THÔNG SỐ KỸ THUẬT:

Application (1) Harness Multiple Cables Into a Single Manageable Bundle (2) Allows Breakouts of Single/Multiple Cables (3) Provides Abrasion Protection for Wire, Cables, Hoses, and Tubing
Note T12R-CY replaces T12R-C
Product Type Spiral Wrap
Color Natural
Flammability Rating UL94V-2
Includes Installation Tool
Material Fire Resistant Polyethylene
Resistance Properties Fire Resistant
Maximum Bundle Diameter (In.) 0.5
Maximum Bundle Diameter (mm) 12.7
Maximum Operating Temperature (°C) 50
Maximum Operating Temperature (°F) 122
Minimum Bundle Diameter (In.) 0.0625
Minimum Bundle Diameter (mm) 1.6
Minimum Operating Temperature (°C) -40
Minimum Operating Temperature (°F) -40
Outer Diameter (In.) 0.12
Outer Diameter (mm) 3
Overall Length (ft.) 100
Overall Length (m) 30.5
Standards Met UL Recognized E141152
Wall Thickness (In.) 0.03
Wall Thickness (mm) 0.8
Part Features Allows breakouts of single/multiple cables, Provides abrasion protection for wire, cables, hoses and tubing. Multiple colors allow for easy identification of cable bundles. Installation tool is supplied and the spiral wrap is reusable.
