Panduit Spiral Wrap offers abrasion protection for wires, cables, hoses and tubing [T19F-M]; PAP142

Name: Panduit Spiral Wrap offers abrasion protection for wires, cables, hoses and tubing [T19F-M]; PAP142
Brand: Panduit
SKU: PAP142
Price: 21114820.0 VND
Availability: InStock

Mã kho: PAP142

Mã nhà sản xuất: T19F-M

Tên nhà sản xuất: Panduit

21.114.820₫ - 21.114.820₫

21.114.820₫

21.114.820₫ - 21.114.820₫

21.114.820₫

📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Wire Routing Management Protection / Abrasion Protection / Cable Sleeves Tools Wraps: Panduit T19F-M

MÔ TẢ SẢN PHẨM

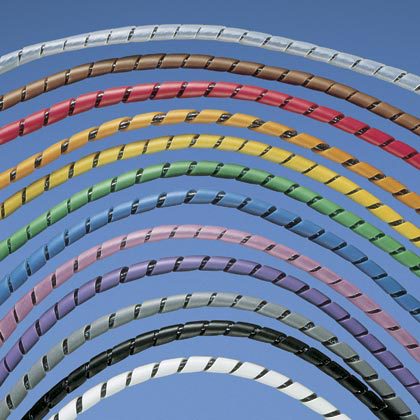

Spiral Wrap offers abrasion protection for wires, cables, hoses and tubing

_THÔNG SỐ KỸ THUẬT:

Application	(1) Harness Multiple Cables Into a Single Manageable Bundle (2) Allows Breakouts of Single/Multiple Cables (3) Provides Abrasion Protection for Wire, Cables, Hoses, and Tubing
Product Type	Spiral Wrap
Color	Natural
Flammability Rating	UL94-HB
Includes	Installation Tool
Material	Polyethylene
Resistance Properties	Abrasion Protection
Maximum Bundle Diameter (In.)	1
Maximum Bundle Diameter (mm)	25.4
Maximum Operating Temperature (°C)	50
Maximum Operating Temperature (°F)	122
Minimum Bundle Diameter (In.)	0.125
Minimum Bundle Diameter (mm)	3.2
Minimum Operating Temperature (°C)	-40
Minimum Operating Temperature (°F)	-40
Outer Diameter (In.)	0.19
Outer Diameter (mm)	4.8
Overall Length (ft.)	1000
Overall Length (m)	304.8
Standards Met	UL Recognized E141152
Wall Thickness (In.)	0.03
Wall Thickness (mm)	0.8
