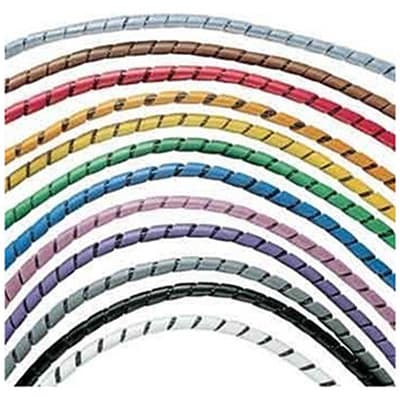

Panduit T25FR-M20Y

Panduit Spiral Wrap, offers abrasion protection for wires, cables, hoses and tubing, .25" (6.3mm) x 1000', flame retardant polyethylene, black, bulk package. [T25FR-M20Y]; PAP184

Mã kho: PAP184
Mã nhà sản xuất: T25FR-M20Y
Tên nhà sản xuất: Panduit
37.707.930₫ - 37.707.930₫
37.707.930₫
37.707.930₫ - 37.707.930₫
37.707.930₫
📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Wire Routing Management Protection / Abrasion Protection / Cable Sleeves Tools Wraps: Panduit T25FR-M20Y

MÔ TẢ SẢN PHẨM

Spiral Wrap, offers abrasion protection for wires, cables, hoses and tubing, .25" (6.3mm) x 1000', flame retardant polyethylene, black, bulk package.

_THÔNG SỐ KỸ THUẬT:

Application (1) Harness Multiple Cables Into a Single Manageable Bundle (2) Allows Breakouts of Single/Multiple Cables (3) Provides Abrasion Protection for Wire, Cables, Hoses, and Tubing
Note T25FR-M20Y replaces T25FR-M20
Product Type Spiral Wrap
Color Black
Flammability Rating UL94V-0
Includes Installation Tool
Material Flame Retardant Polyethylene
Resistance Properties Flame Resistant
Maximum Bundle Diameter (In.) 2
Maximum Bundle Diameter (mm) 50.8
Maximum Operating Temperature (°C) 65
Maximum Operating Temperature (°F) 149
Minimum Bundle Diameter (In.) 0.1875
Minimum Bundle Diameter (mm) 4.8
Minimum Operating Temperature (°C) -40
Minimum Operating Temperature (°F) -40
Outer Diameter (In.) 0.25
Outer Diameter (mm) 6.4
Overall Length (ft.) 1000
Overall Length (m) 304.8
Standards Met UL Recognized E141152
Wall Thickness (In.) 0.04
Wall Thickness (mm) 1
Part Features Allows breakouts of single/multiple cables, Provides abrasion protection for wire, cables, hoses and tubing. Multiple colors allow for easy identification of cable bundles. Installation tool is supplied and the spiral wrap is reusable.
