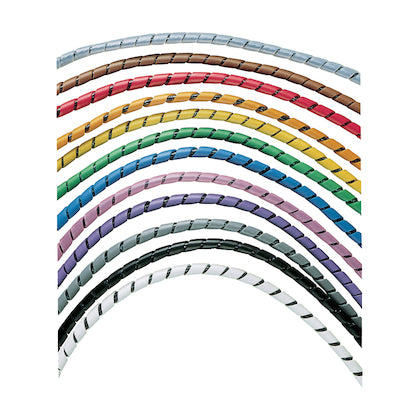

Panduit T50F-C1

Panduit Spiral wrap, offers abrasion protection for wires, cables, hoses and tubing, .50" (12.7mm) x 100', polyethylene, brown. [T50F-C1]; PAP234

Mã kho: PAP234
Mã nhà sản xuất: T50F-C1
Tên nhà sản xuất: Panduit
0₫ - 0₫
0₫
0₫ - 0₫
0₫
📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Wire Routing Management Protection / Abrasion Protection / Cable Sleeves Tools Wraps: Panduit T50F-C1

MÔ TẢ SẢN PHẨM

Spiral wrap, offers abrasion protection for wires, cables, hoses and tubing, .50" (12.7mm) x 100', polyethylene, brown.

_THÔNG SỐ KỸ THUẬT:

Application (1) Harness Multiple Cables Into a Single Manageable Bundle (2) Allows Breakouts of Single/Multiple Cables (3) Provides Abrasion Protection for Wire, Cables, Hoses, and Tubing
Product Type Spiral Wrap
Color Brown
Flammability Rating UL94-HB
Includes Installation Tool
Material Polyethylene
Resistance Properties Abrasion Protection
Maximum Bundle Diameter (In.) 4
Maximum Bundle Diameter (mm) 101.6
Maximum Operating Temperature (°C) 50
Maximum Operating Temperature (°F) 122
Minimum Bundle Diameter (In.) 0.375
Minimum Bundle Diameter (mm) 9.5
Minimum Operating Temperature (°C) -40
Minimum Operating Temperature (°F) -40
Outer Diameter (In.) 0.5
Outer Diameter (mm) 12.7
Overall Length (ft.) 100
Overall Length (m) 30.5
Standards Met UL Recognized E141152
Wall Thickness (In.) 0.06
Wall Thickness (mm) 1.5
Part Features Allows breakouts of single/multiple cables, Provides abrasion protection for wire, cables, hoses and tubing. Multiple colors allow for easy identification of cable bundles. Installation tool is supplied and the spiral wrap is reusable.
