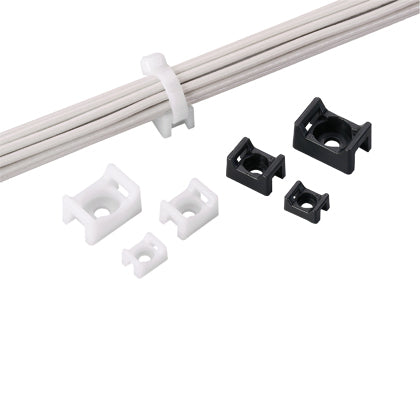

Panduit TM1S6-M30

The cable tie mount in black is applied with a #6 (M3) screw and is 0.32" (8.1 mm) wide. It is made of heat-stabilized nylon 6.6, which increases mechanical strength, heat and wear resistance, and stiffness in indoor environments. It comes in packages of

Mã kho: PAP339
Tên nhà sản xuất: Panduit
5.730₫ - 5.730₫
5.730₫
5.730₫ - 5.730₫
5.730₫
📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Wire Routing Management Protection / Cable Wire Ties Mounts Straps / Cable Tie Mounts: Panduit TM1S6-M30

MÔ TẢ SẢN PHẨM

The cable tie mount in black is applied with a #6 (M3) screw and is 0.32" (8.1 mm) wide. It is made of heat-stabilized nylon 6.6, which increases mechanical strength, heat and wear resistance, and stiffness in indoor environments. It comes in packages of 1000.

_THÔNG SỐ KỸ THUẬT:

Application Low Profile Flame Retardant Cable Tie Mount to Keep Bundle Close to Mounting Surface and for Indoor Use
Product Type Cable Tie Mount
Color Black
Flammability Rating UL94V-2
Environment Indoor
Material Heat Stabilized Nylon 6.6
Maximum Operating Temperature (°C) 115
Maximum Operating Temperature (°F) 239
Minimum Operating Temperature (°C) -60
Minimum Operating Temperature (°F) -76
Mount Method Screw
Mounting Hole Thread Size #6
Overall Length (In.) 0.51
Overall Length (mm) 13
Overall Width (In.) 0.32
Overall Width (mm) 8
Resistance Properties Heat Resistant
Standards Met CE Compliant, UL Recognized:E136577, RoHS Compliant
Sub Brand NA
For Use With Miniature Cross-Section Ties
