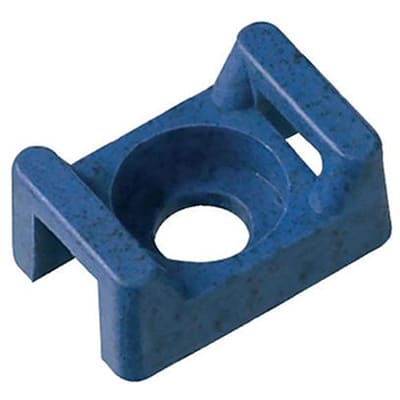

Panduit TM2S8-C186

The Pan-Ty® cable tie mount in dark blue is used with miniature, intermediate, and standard cross section cable ties and applied with a #8 (M4) screw. It is 0.43" (10.8 mm) wide and made of metal-detectable polypropylene for indoor environments. It comes

Mã kho: PAP357
Tên nhà sản xuất: Panduit
26.160₫ - 26.160₫
26.160₫
26.160₫ - 26.160₫
26.160₫
📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Wire Routing Management Protection / Cable Wire Ties Mounts Straps / Cable Tie Mounts: Panduit TM2S8-C186

MÔ TẢ SẢN PHẨM

Panduit TM2S8-C186 Metal Detectable screw applied cable mounts allow identification by metal detection equipment to help meet food, beverage, and pharmaceutical safety standards. The mounts provide maximum stability and keep cables bundle close to mounting surface. For use with #8 (M4) screw and Min

_THÔNG SỐ KỸ THUẬT:

Application Unique Cradle Design Provides Maximum Stability for the Cable Bundle and Low Profile Design Keeps Bundle Close to Mounting Surface
Product Type Cable Tie Mount
Color Dark Blue
Flammability Rating UL94-HB
Environment Indoor
Material Metal Impregnated Polypropylene
Maximum Operating Temperature (°C) 115
Maximum Operating Temperature (°F) 239
Minimum Operating Temperature (°C) -40
Minimum Operating Temperature (°F) -40
Mount Method Screw
Mounting Hole Thread Size #8 (M4)
Overall Height (In.) 0.275
Overall Height (mm) 7
Overall Length (In.) 0.63
Overall Length (mm) 16
Overall Width (In.) 0.422
Overall Width (mm) 50.3
Resistance Properties Chemical Resistant
Standards Met RoHS Compliant
For Use With Miniature, Intermediate, Standard Cross-Section Ties
