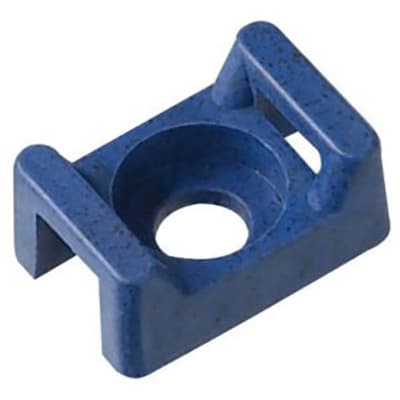

The Pan-Ty® cable tie mount in dark blue is used with standard or light heavy cable ties and applied with a #8 (M4) screw. It is 0.86" (22 mm) wide and made of metal-detectable polypropylene for indoor environments. It comes in packages of 100.

Mã kho: PAP389
Tên nhà sản xuất: Panduit
Original price 28.330₫ - Original price 28.330₫
Original price
28.330₫
28.330₫ - 28.330₫
Current price 28.330₫
📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Wire Routing Management Protection / Cable Wire Ties Mounts Straps / Cable Tie Mounts: Panduit TM3S8-C186

MÔ TẢ SẢN PHẨM

Panduit TM3S8-C186 Metal Detectable screw applied cable mounts allow identification by metal detection equipment to help meet food, beverage, and pharmaceutical safety standards. The mounts provide maximum stability and keep cables bundle close to mounting surface. For use with #8 (M4) screw and Sta

_THÔNG SỐ KỸ THUẬT:

Application Unique Cradle Design Provides Maximum Stability for the Cable Bundle and Low Profile Design Keeps Bundle Close to Mounting Surface
Product Type Cable Tie Mount
Color Dark Blue
Flammability Rating UL94-HB
Environment Indoor
Material Metal Impregnated Polypropylene
Maximum Operating Temperature (°C) 115
Maximum Operating Temperature (°F) 239
Minimum Operating Temperature (°C) -40
Minimum Operating Temperature (°F) -40
Mount Method Screw
Mounting Hole Thread Size #8 (M4)
Overall Height (In.) 0.373
Overall Height (mm) 9.5
Overall Length (In.) 0.867
Overall Length (mm) 22
Overall Width (In.) 0.614
Overall Width (mm) 50.3
Resistance Properties Chemical Resistant
Standards Met RoHS Compliant
For Use With Standard, Light Heavy Cross-Section Ties
