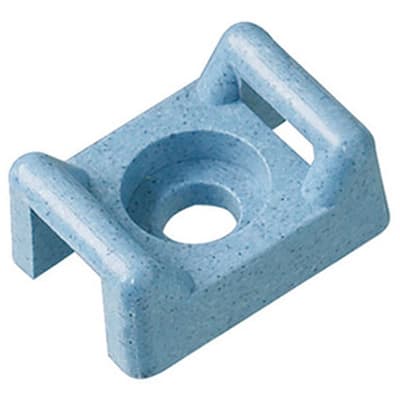

Panduit TM3S8-C86

The Pan-Ty® cable tie mount in light blue is used with standard or light heavy cable ties and applied with a #8 (M4) screw. It is 0.86" (22 mm) wide and made of metal-detectable nylon 6.6 for indoor environments. It comes in packages of 100.

Mã kho: PAP392
Tên nhà sản xuất: Panduit
23.270₫ - 23.270₫
23.270₫
23.270₫ - 23.270₫
23.270₫
📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Wire Routing Management Protection / Cable Wire Ties Mounts Straps / Cable Tie Mounts: Panduit TM3S8-C86

MÔ TẢ SẢN PHẨM

Panduit TM3S8-C86 Cable Tie Mounts are designed to help the food, beverage and pharmaceutical industries meet product manufacturing safety standards. In addition to their metal detectability, their cradle design allows cable bundles to remain securely in place, close to the mounting surface.These mo

_THÔNG SỐ KỸ THUẬT:

Application Unique Cradle Design Provides Maximum Stability for the Cable Bundle and Low Profile Design Keeps Bundle Close to Mounting Surface
Product Type Cable Tie Mount
Color Light Blue
Flammability Rating UL94-HB
Environment Indoor
Material Metal Impregnated Nylon 6.6
Maximum Operating Temperature (°C) 85
Maximum Operating Temperature (°F) 185
Minimum Operating Temperature (°C) -40
Minimum Operating Temperature (°F) -40
Mount Method Screw
Mounting Hole Thread Size #8 (M4)
Overall Height (In.) 0.373
Overall Height (mm) 9.5
Overall Length (In.) 0.87
Overall Length (mm) 22
Overall Width (In.) 0.614
Overall Width (mm) 50.3
Standards Met RoHS Compliant
For Use With Standard, Light Heavy Cross-Section Ties
