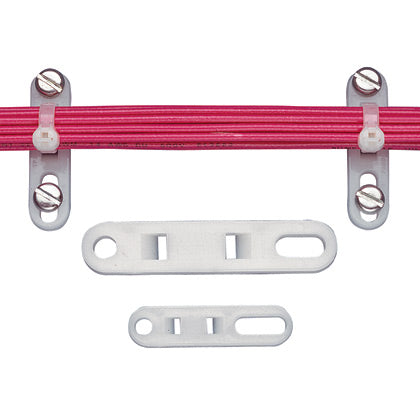

Panduit TP4H-C

The cable tie plate in natural color is applied with 1/4" (M6) screws. It is made of nylon 6.6, which increases mechanical strength, heat and wear resistance, and stiffness in indoor environments. It is used with miniature, intermediate, standard, heavy-s

Mã kho: PAP453
Tên nhà sản xuất: Panduit
39.290₫ - 39.290₫
39.290₫
39.290₫ - 39.290₫
39.290₫
📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Wire Routing Management Protection / Cable Wire Ties Mounts Straps / Cable Tie Mounts: Panduit TP4H-C

MÔ TẢ SẢN PHẨM

The cable tie plate in natural color is applied with 1/4" (M6) screws. It is made of nylon 6.6, which increases mechanical strength, heat and wear resistance, and stiffness in indoor environments. It is used with miniature, intermediate, standard, heavy-standard, light-heavy, and heavy cable ties. I

_THÔNG SỐ KỸ THUẬT:

Application Cable Tie Plate Used with Miniature, Intermediate, Standard, Heavy-Standard, Light-Heavy, and Heavy Cable Ties.
Product Type Cable Tie Mount
Color Natural
Flammability Rating UL94V-2
Environment Indoor
Material Nylon 6.6
Maximum Operating Temperature (°C) 85
Maximum Operating Temperature (°F) 185
Mount Method Screw
Mounting Hole Thread Size #M6
Overall Height (In.) 0.2
Overall Height (mm) 5.2
Overall Length (In.) 3.08
Overall Length (mm) 78.2
Overall Width (In.) 0.62
Overall Width (mm) 50.3
Standards Met CE Compliant, UL Recognized:E136577, RoHS Compliant
Sub Brand NA
For Use With Miniature, Intermediate, Standard, Light Heavy, Heavy Cross-Section Ties
