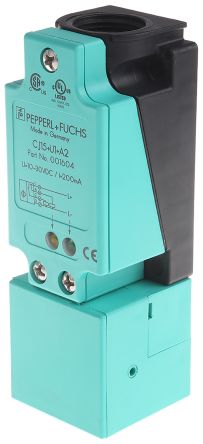

Pepperl + Fuchs Capacitive sensor 15 mm length 118mm PNP-NO/NC supply voltage 10 → 30 V dc IP65 [CJ15+U1+A2]; 280-6529
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Body Style | Block |
| Output Type | PNP-NO/NC |
| Detection Range | 15 mm |
| Supply Voltage | 10 → 30 V dc |
| Terminal Type | M20 Gland |
| IP Rating | IP65 |
| Maximum DC Voltage | 30V |
| Mounting Style | Flush |
| Length | 118mm |
| Width | 40mm |
| Depth | 40mm |
| Switching Current | 200 mA |
| Housing Material | PBT |
| Short Circuit Overload Protection | Yes |
| Switching Frequency | 0 → 10 Hz |
| Reverse Polarity Protection | Yes |
| Minimum Operating Temperature | -25°C |
| Dimensions | 118 x 40 x 40 mm |
| Maximum Operating Temperature | +70°C |
