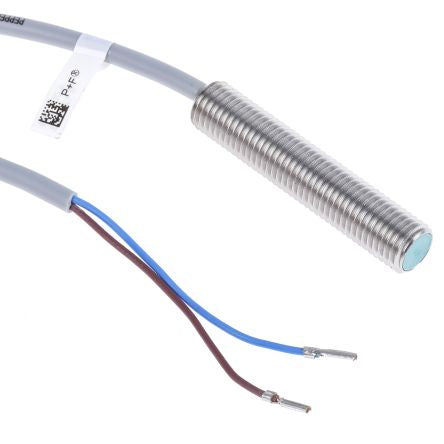

Pepperl + Fuchs, M8 x 1, NO Inductive Sensor 40mm Length, 5 → 60 V dc supply voltage , IP67 Rating [NBB1,5-8GM40-Z0]; 105-8532
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Body Style | Barrel |
| Thread Size | M8 x 1 |
| Output Type | NO |
| Detection Range | 1.5 mm |
| Terminal Type | Cable |
| Supply Voltage | 5 → 60 V dc |
| Length | 40mm |
| Maximum DC Voltage | 60V |
| Mounting Type | Flush Mount |
| IP Rating | IP67 |
| Switching Current | 100 mA |
| Housing Material | Stainless Steel |
| Maximum Switching Frequency | 1.2kHz |
| Minimum Operating Temperature | -25°C |
| Shielding | Unshielded |
| Short Circuit Overload Protection | Yes |
| Standards Met | CCC, CCSAus Listed, CE, CULus Listed, EN 60947-5-2: 2007, IEC 60947-5-2: 2007 |
| Reverse Polarity Protection | Yes |
| Maximum Operating Temperature | +70°C |
