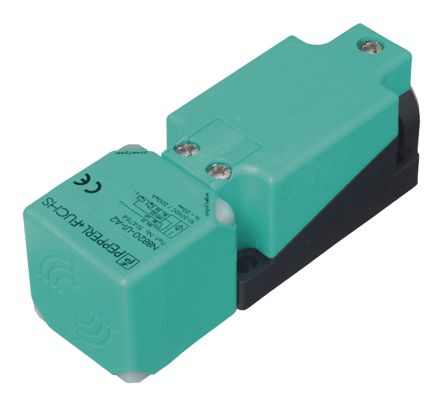

Pepperl + Fuchs PNP-NO/NC Inductive Sensor 118mm Length, 10 → 30 V dc supply voltage , IP68, IP69K Rating [NBB20-U1-A2-T]; 877-1609
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Body Style | Block |
| Output Type | PNP-NO/NC |
| Detection Range | 20 mm |
| Terminal Type | M20 Gland |
| Supply Voltage | 10 → 30 V dc |
| Length | 118mm |
| Width | 40mm |
| Depth | 40mm |
| Maximum DC Voltage | 30V |
| Mounting Type | Flush Mount |
| IP Rating | IP68, IP69K |
| Switching Current | 0 → 200 mA |
| Housing Material | LCP, Polyamide |
| Reverse Polarity Protection | Yes |
| Standards Met | CCC, CSA, EN 60497-5-2: 2007, IEC 60947-5-2: 2007, UL |
| Short Circuit Overload Protection | Yes |
| Maximum Operating Temperature | +100°C |
| Minimum Operating Temperature | -25°C |
| Maximum Switching Frequency | 300Hz |
