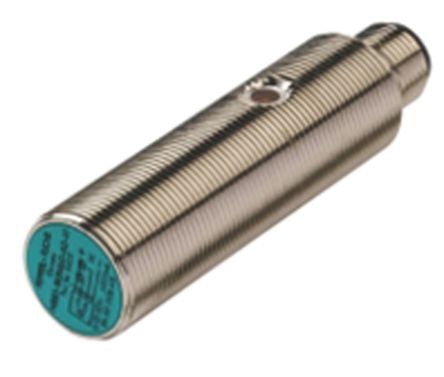

Pepperl + Fuchs, M12 x 1, NPN-NO/NC Inductive Sensor 70mm Length, 10 → 30 V dc supply voltage , IP67 Rating [NBB5-18GM60-A0-V1]; 831-3593
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Body Style | Barrel |
| Thread Size | M12 x 1 |
| Output Type | NPN-NO/NC |
| Detection Range | 5 mm |
| Terminal Type | M12 - 4 Pin |
| Supply Voltage | 10 → 30 V dc |
| Length | 70mm |
| Maximum DC Voltage | 30V |
| Mounting Type | Flush Mount |
| Switching Current | 200 mA |
| IP Rating | IP67 |
| Housing Material | Brass, Nickel Plated |
| Maximum Operating Temperature | +70°C |
| Reverse Polarity Protection | Yes |
| Shielding | Unshielded |
| Short Circuit Overload Protection | Yes |
| Minimum Operating Temperature | -25°C |
| Maximum Switching Frequency | 800Hz |
