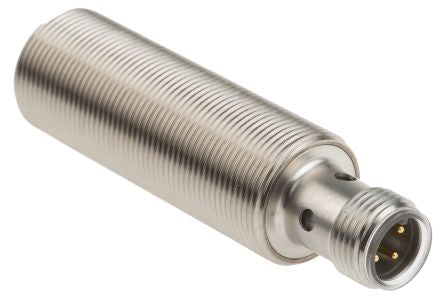

Pepperl + Fuchs, M18 x 1, PNP-NO Inductive Sensor 65mm Length, 10 → 30 V dc supply voltage , IP67 Rating [NBB8-18GM50-E2-V1]; 249-2423
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Body Style | Barrel |
| Thread Size | M18 x 1 |
| Output Type | PNP-NO |
| Detection Range | 8 mm |
| Terminal Type | M12 - 4 Pin |
| Supply Voltage | 10 → 30 V dc |
| Length | 65mm |
| Maximum DC Voltage | 30V |
| Mounting Type | Flush Mount |
| Switching Current | 200 mA |
| IP Rating | IP67 |
| Housing Material | Nickel Plated Brass |
| Maximum Operating Temperature | +70°C |
| Short Circuit Overload Protection | Yes |
| Reverse Polarity Protection | Yes |
| Maximum Switching Frequency | 500Hz |
| Minimum Operating Temperature | -40°C |
