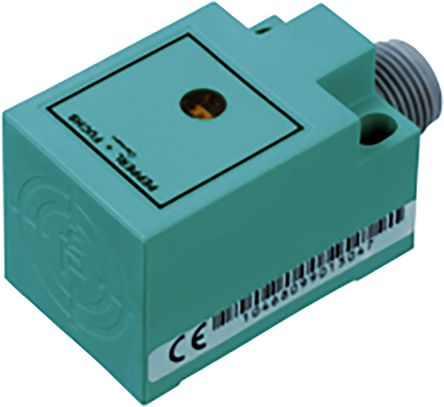

Pepperl + Fuchs, M12, PNP Inductive Sensor 25mm Length, 10 → 30 V dc supply voltage , IP67 Rating [NBN10-F10-E2-V1]; 184-8791
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Body Style | Barrel |
| Output Type | PNP-NO |
| Detection Range | 10 mm |
| Terminal Type | M12 - 4 Pin |
| Supply Voltage | 10 → 30 V dc |
| Length | 25mm |
| Width | 38.5mm |
| Depth | 25.5mm |
| Maximum DC Voltage | 30V |
| Mounting Type | Non Flush |
| Switching Current | 100 mA |
| IP Rating | IP67 |
| Housing Material | PBT |
| Maximum Switching Frequency | 500Hz |
| Reverse Polarity Protection | Yes |
| Short Circuit Overload Protection | Yes |
| Maximum Operating Temperature | +70°C |
| Minimum Operating Temperature | -25°C |
| Standards Met | CCC Certified, CE Certified, CULus Listed, EN 60947-5-2, EN 60947-5-2/A1, IEC 60947-5-2, IEC 60947-5-2 AMD 1 |
