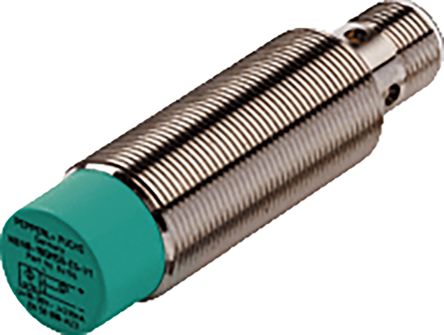

Pepperl + Fuchs, M18, PNP Inductive Sensor 65mm Length, 10 → 30 V supply voltage , IP67 Rating [NBN12-18GM50-A2-V1]; 184-8829
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Body Style | Barrel |
| Thread Size | M18 x 1 |
| Output Type | PNP-NO/NC |
| Detection Range | 12 mm |
| Terminal Type | M12 - 4 Pin |
| Supply Voltage | 10 → 30 V dc |
| Length | 65mm |
| Mounting Type | Non Flush |
| IP Rating | IP67 |
| Switching Current | 200 mA |
| Housing Material | Brass |
| Maximum Operating Temperature | +70°C |
| Reverse Polarity Protection | Yes |
| Maximum Switching Frequency | 1kHz |
| Standards Met | CCC Certified, CCSAus Listed, CE Certified, CULus Listed, EN 60947-5-2, IEC 60947-5-2 |
| Short Circuit Overload Protection | Yes |
| Minimum Operating Temperature | -25°C |
